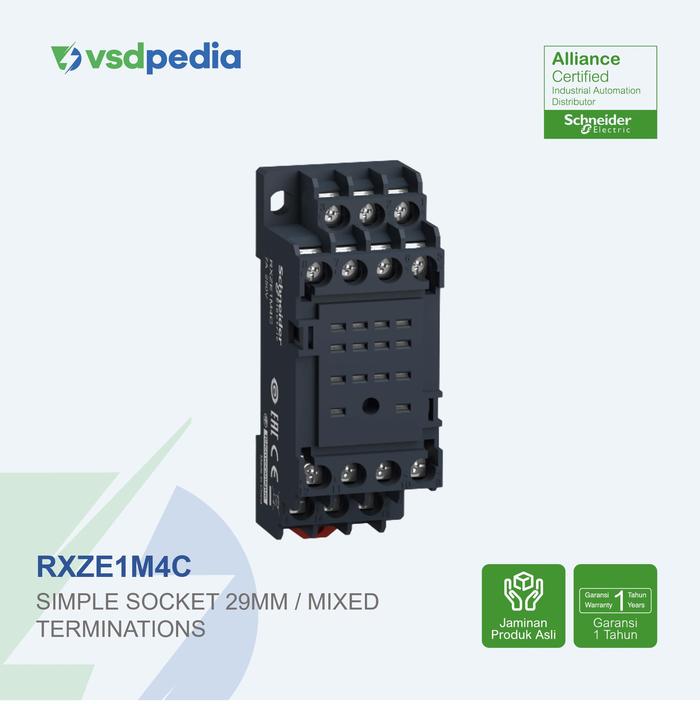

SCHNEIDER HARMONY EASY ELECTROMECHANICAL RELAY SOCKET RXM2LB RXM4LB TERMINAL TERCAMPUR SCREW CLAMP RXZE1M4C

RXZE1M4C
Socket RXZ - Mixed Contact - 7A - 250V - Screw Clamp - For Relay RXM2.., RXM4..

Barang Original Schneider 100% dan Bergaransi Resmi 12 Bulan

TENTANG PRODUCT
This Harmony RXZ plug-in socket has a rated voltage of 250V AC with an output rating of 7A." "This plug-in relay socket is compatible with interface plug-in relay RXM range." "It has a large choice of number of contacts for high rated current use with space-saving design which allows for a flexible and easy installation on DIN rail." "It helps to reduce the size of enclosures and increase machine reliability, you can mount nearly everywhere." "It is compatible with plug in control relay." "It enables easy installation and connect to relay from its socket. "Workability for hard-wired logic automated systems to complement the functions of industrial programmable logic controllers (PLCs).

SPESIFIKASI
= Main =
1. Range of product : Harmony Electromechanical Relays
2. Product compatibility :
- Plug-in relay RXM with 2 C/O contact
- Plug-in relay RXM with 4 C/O contact
3. Device short name : RXZ
4. [Ith] conventional free air thermal current : 7 A
5. Product or component type : Socket
6. Contacts type and composition : 4 C/O
= Complementary =
1. [Ue] rated operational voltage : 250 V AC conforming to IEC
2. Connections - terminals :
- Screw clamp terminals, 1 x 0.2...1 x 1.0 mm² (AWG 24...AWG 17) flexible with cable end
- Screw clamp terminals, 2 x 0.2...2 x 1.0 mm² (AWG 24...AWG 17) flexible with cable end
- Screw clamp terminals, 1 x 0.5...1 x 1.5 mm² (AWG 20...AWG 16) solid without cable end
- Screw clamp terminals, 2 x 0.5...2 x 1.5 mm² (AWG 20...AWG 16) solid without cable end
3. Tightening torque : < 0.8 N.m for M3 screw(s)
4. Fixing mode :
- By screw (panel)
- Clip-on (35 mm symmetrical DIN rail)
5. Contact terminal arrangement : Mixed
6. [Uimp] rated impulse withstand voltage : 4 kV
7. overvoltage category : III
8. pollution degree : 3
9. Sale per indivisible quantity : 10
10. Width : 29 mm
11. Product weight : 0.053 kg
= Environment =
1. Dielectric strength : 2500 V
2. Standards : IEC 61984
3. Marking : CE
4. Ambient air temperature for storage : -55…85 °C
5. Ambient air temperature for operation : -40…55 °C
