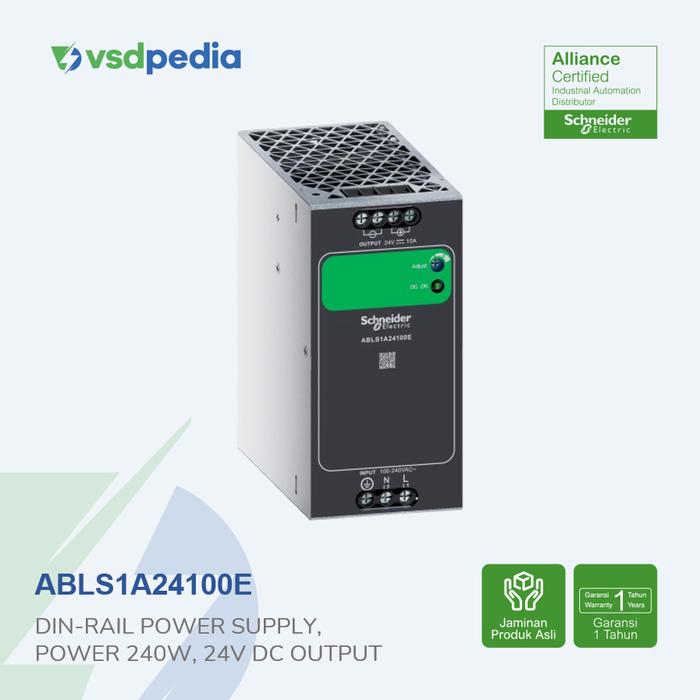

SCHNEIDER HARMONY EASY POWER SUPPLY UNIT PSU MODICON ABLSE DIN RAIL MOUNTING TEGANGAN INPUT 100-240V, TEGANGAN OUTPUT 24VDC 240 WATT 10A AUTOMATIC WITH OUTPUT VOLTAGE ADJUSTMENT POTENTIOMETER ABLS1A24100E

ABLS1A24100E
Single Phase Power Supply, 100…240V AC Input, 24V DC Output, 240W, Din-Rail, IP20

100% Produk Original Schneider dan Garansi Resmi 12 Bulan

SPESIFIKASI
= Main =

Range of product : Easy Modicon ABL2
Product or component type : Power supply
Power supply type : Regulated switch mode
Rated power in W : 240 W
Main Input Voltage : 100...240 V AC single phase 140...340 V DC
Output voltage : 24 V DC
Power supply output current : 10 A
Operating position : Vertical
Vibration resistance : 2 gn (f= 10…500 Hz) conforming to IEC 60068-2-6
Name of test : Radiated electromagnetic field conforming to EN 61000-4-3 level 3A Electrostatic discharges conforming to EN 61000-4-2 level 3B Electrical fast transients/bursts conforming to EN 61000-4-4 level 3B Surge conforming to EN 61000-4-5 level 3B Conducted conforming to EN 61000-4-6 level 3A Emission conforming to EN 55032 conforming to EN 61000-3-2
= Complementary =

Input voltage limits : 90...264 V AC 127...370 V DC
Network frequency : 47...63 Hz
Inrush current : 20 A at 115 V AC 35 A at 230 V AC
Cos phi : 0.9…0.98
Efficiency : 88 %
Power dissipation in W : 25 W
Current consumption : 1.18 A at 240 V 2.91 A at 100 V
Input protection type : Integrated fuse (not interchangeable)
Output voltage limits : 21.6...27.6 V
Line and load regulation : +/- 1 %
Holding time : >= 16 ms at 115 V
Output protection type : Against overload, protection technology: 1.1...1.3 x In overload protection Against overvoltage, protection technology: tripping if U between 29...33 V Against short-circuits, protection technology: automatic reset Thermal, protection technology: auto reset
Connections - terminals : For ground connection: screw type terminals, connection capacity: 1 x 4 mm² AWG 12 For input connection: screw type terminals, connection capacity: 2 x 4 mm² AWG 12 For output connection: screw type terminals, connection capacity: 4 x 4 mm² AWG 12
Marking : CE UL
Operating altitude : 2000 m 5000 m
Overvoltage category : II
Meantime between failure [MTBF] : 100000 h at 40 °C
Status LED : 1 LED (green) output voltage
Width : 60 mm
Height : 125 mm
Depth : 113 mm
Net weight : 0.935 kg
