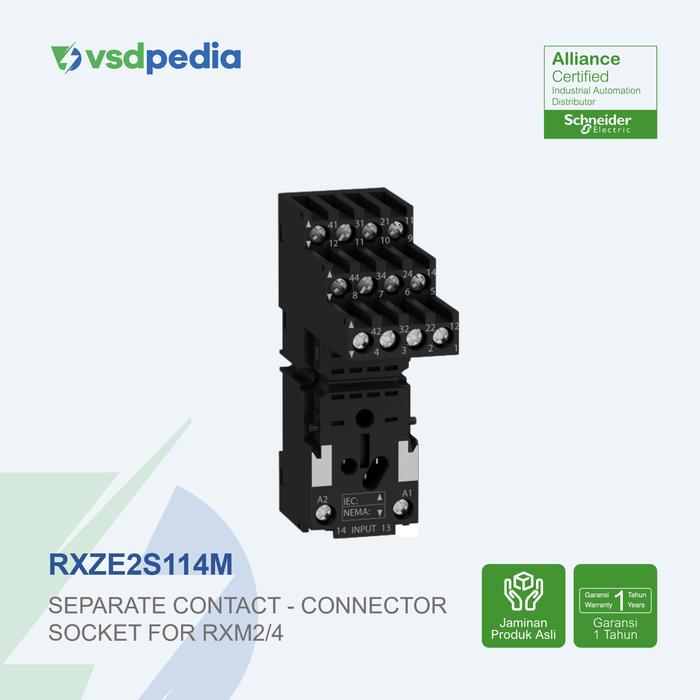

SCHNEIDER HARMONY ELECTROMECHANICAL RELAY SOCKET RXM4AB TERMINAL TERPISAH SCREW CONNECTOR RXZE2S114M

RXZE2S114M
Socket RXZ - Separate Contact - 10A - < 250 V - Connector - For Relay RXM4..

Barang Original Schneider 100% dan Bergaransi Resmi 12 Bulan

TENTANG PRODUCT
"This Harmony RXZ plug-in relay socket has a coil control voltage of 250V AC and has 4 changeover contacts 4PDT (quadruple pole double throw) with a rating of 10A." "It has large choice of number of contacts for high rated current use with space-saving design." "It helps to reduce the size of enclosures and increases machine reliability, you can mount nearly everywhere." "It is compatible with plug in control relay." "Easy installation and connect to the relay from its socket." "Workability for hard-wired logic automated systems to complement the functions of industrial programmable logic controllers (PLCs)."

SPESIFIKASI
= Main =
1. Range of product : Harmony Timer Relays
2. Product compatibility :
- Plug-in relay RXM with 2 C/O contact
- Plug-in relay RXM with 4 C/O contact
- Plug-in relay REXL with 2 C/O contact
- Plug-in relay REXL with 4 C/O contact
- Plug-in relay 782H with 4 C/O contact
3. Device short name : RXZ
4. [Ith] conventional free air thermal current : 10 A
5. Product or component type : Socket
6. Contacts type and composition : 4 C/O
= Complementary =
1. [Ue] rated operational voltage :
- < 250 V conforming to IEC
- < 300 V conforming to UL
2. Connections - terminals :
- Screw connectors, 1 x 0.34...1 x 2.5 mm² (AWG 22...AWG 14) flexible with cable end
- Screw connectors, 2 x 0.34...2 x 1 mm² (AWG 22...AWG 17) flexible with cable end
- Screw connectors, 1 x 0.5...1 x 2.5 mm² (AWG 20...AWG 14) solid without cable end
- Screw connectors, 2 x 0.5...2 x 1.5 mm² (AWG 20...AWG 16) solid without cable end
3. Shape of pin : Flat
4. Tightening torque : < 1 N.m for M3 screw(s)
5. Fixing mode :
- By screw (panel)
- Clip-on (35 mm symmetrical DIN rail)
6. Wire stripping length : 8 mm
7. Contact terminal arrangement : Separate
8. [Uimp] rated impulse withstand voltage : 4 kV
9. overvoltage category : III
10. pollution degree : 3
11. Sale per indivisible quantity : 10
12. Width : 27 mm
13. Product weight : 0.062 kg
= Environment =
1. IP degree of protection : IP20 conforming to IEC 60529
2. Dielectric strength : 2500 V
3. Standards : IEC 61984
4. Product certifications :
- CSA
- Lloyd's
- UL
5. Marking : CE
6. Ambient air temperature for storage : -40…85 °C
7. ambient air temperature for operation : -40…55 °C
