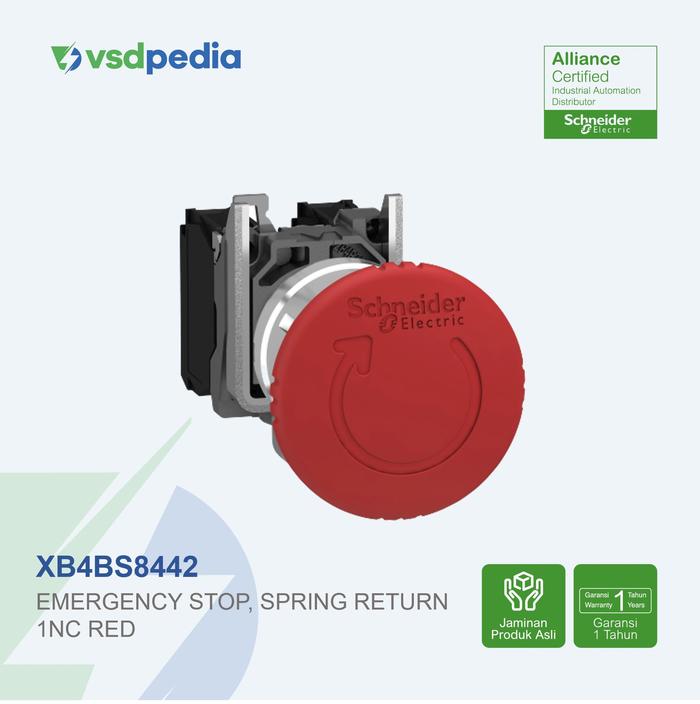

SCHNEIDER HARMONY XB4 EMERGENCY STOP METAL TOMBOL TEKAN DARURAT LATCHING TURN TO RELEASE 40MM 1NC XB4BS8442

XB4BS8442
Red ø40 Emergency Stop, Switching Off ø22 Latching Turn Release 1 NC

Barang Original Schneider 100% dan Bergaransi Resmi 12 Bulan

TENTANG PRODUCT
This Harmony XB4 emergency stop / shutdown 40mm mushroom head modular red push button operates with a latched turn to release mechanism. It has a metal bezel. This emergency stop / shutdown button, also called EMS (Emergency Machine Stop) and EMO (Emergency Off), is easily installed into a standard 22mm diameter cut-outs and connected with simple screw-clamp connections. It is clearly distinguishable visually at a distance thanks to a clear color and a prominent 40mm mushroom shape. It is impact resistant, dust resistant, water resistant and vibration resistant thanks to its IP66, making it ideal for operation in harsh environments.

SPESIFIKASI
= Main =
1. Range of product : Harmony XB4
2. Product or component type :
- Emergency switching off push-button
- Emergency stop push-button
3. Device short name : XB4
4. Bezel material : Chromium plated metal
5. Fixing collar material : Zamak
6. Mounting diameter : 22.5 mm
7. Sale per indivisible quantity : 1
8. Shape of signaling unit head : Round
9. Type of operator : trigger action and mechanical latching
10. Head type : Standard
11. Reset : Turn to release
12. Operator profile : Red mushroom Ø 40 mm, unmarked
13. Contact operation : Slow-break
14. Connections - terminals :
- Screw clamp terminals, <= 2 x 1.5 mm² with cable end conforming to IEC 60947-1
- Screw clamp terminals, >= 1 x 0.22 mm² without cable end conforming to IEC 60947-1
= Complementary =
1. Height : 47 mm
2. Width : 40 mm
3. Depth : 82 mm
4. Terminals description ISO n°1 : (21-22)NC
5. Net weight : 0.118 kg
6. Resistance to high pressure washer : 7000000 Pa at 55 °C, distance : 0.1 m
7. Contacts type and composition : 1 NC
8. Contacts usage : Standard contacts
9. Positive opening : With conforming to IEC 60947-5-1 appendix K
10. Operating travel :
- 1.5 mm (NC changing electrical state)
- 4.3 mm (total travel)
11. Mechanical durability : 300000 cycles
12. Tightening torque : 0.8…1.2 N.m conforming to IEC 60947-1
13. Shape of screw head :
- Cross compatible with Philips no 1 screwdriver
- Cross compatible with pozidriv No 1 screwdriver
- Slotted compatible with flat Ø 4 mm screwdriver
- Slotted compatible with flat Ø 5.5 mm screwdriver
14. Contacts material : Silver alloy (Ag/Ni)
15. Short-circuit protection : 10 A cartridge fuse type gG conforming to IEC 60947-5-1
16. [Ith] conventional free air thermal current : 10 A conforming to IEC 60947-5-1
17. [Ui] rated insulation voltage : 600 V (pollution degree 3) conforming to IEC 60947-1
18. [Uimp] rated impulse withstand voltage : 6 kV conforming to IEC 60947-1
19. [Ie] rated operational current :
- 3 A at 240 V, AC-15, A600 conforming to IEC 60947-5-1
- 6 A at 120 V, AC-15, A600 conforming to IEC 60947-5-1
- 0.1 A at 600 V, DC-13, Q600 conforming to IEC 60947-5-1
- 0.27 A at 250 V, DC-13, Q600 conforming to IEC 60947-5-1
- 0.55 A at 125 V, DC-13, Q600 conforming to IEC 60947-5-1
- 1.2 A at 600 V, AC-15, A600 conforming to IEC 60947-5-1
20. Electrical durability :
- 1000000 cycles, AC-15, 2 A at 230 V, operating rate
- 1000000 cycles, AC-15, 3 A at 120 V, operating rate
- 1000000 cycles, AC-15, 4 A at 24 V, operating rate
- 1000000 cycles, DC-13, 0.2 A at 110 V, operating rate
- 1000000 cycles, DC-13, 0.5 A at 24 V, operating rate
21. Electrical reliability :
- Λ < 10exp(-6) at 5 V and 1 mA in clean environment conforming to IEC 60947-5-4
- Λ < 10exp(-8) at 17 V and 5 mA in clean environment conforming to IEC 60947-5-4
22. Device presentation : Complete product
= Environment =
1. Protective treatment : TH
2. Ambient air temperature for storage : -40…70 °C
3. Ambient air temperature for operation : -40…70 °C
4. Electrical shock protection class : Class I conforming to IEC 60536
5. IP degree of protection :
- IP66 conforming to IEC 60529
- IP67
- IP69
- IP69K
6. NEMA degree of protection :
- NEMA 13
- NEMA 4X
7. IK degree of protection : IK06 conforming to IEC 50102
8. Standards :
- IEC 60947-5-1
- UL 508
- CSA C22.2 No 14
- ISO 13850
- IEC 60947-5-5
- JIS C8201-5-1
- IEC 60947-1
- IEC 60947-5-4
- IEC 60204-1
- IEC 60364-5-53
- JIS C8201-1
9. Product certifications :
- CSA
- LROS (Lloyds register of shipping)
- BV
- UL listed
- DNV
10. Vibration resistance : 5 gn (f= 2…500 Hz) conforming to IEC 60068-2-6
11. Shock resistance :
- 30 gn (duration = 18 ms) for half sine wave acceleration conforming to IEC 60068-2-27
- 50 gn (duration = 11 ms) for half sine wave acceleration conforming to IEC 60068-2-27
