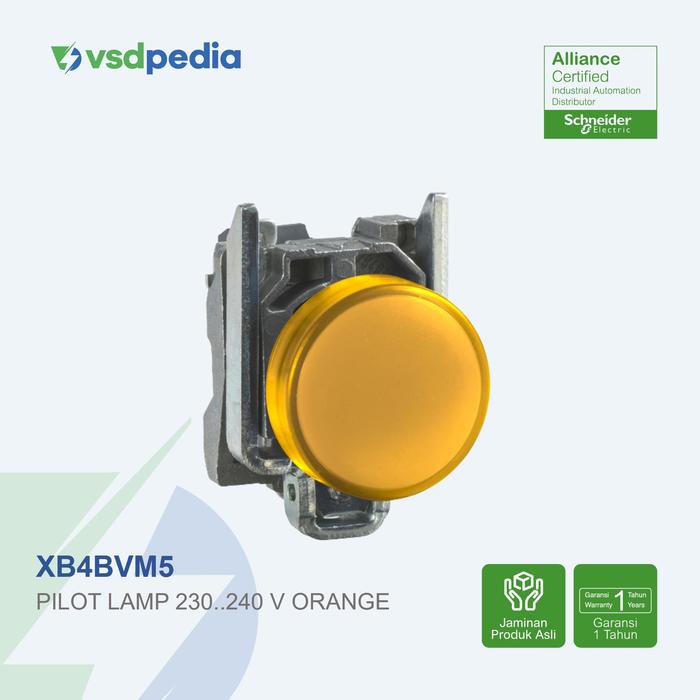

SCHNEIDER HARMONY XB4 PILOT LAMP LIGHT METAL ORANGE LAMPU INDIKATOR JINGGA 22MM 220V AC XB4BVM5

XB4BVM5
Orange Complete Pilot Light ø22 Plain Lens With Integral LED 230...240V

Barang Original Schneider 100% dan Bergaransi Resmi 12 Bulan

TENTANG PRODUCT
This Harmony XB4 plain lens modular orange pilot light is supplied with 230V to 240V AC, uses an integral LED. It has a metal bezel. This pilot light, designed to last without maintenance for a bright indication of process and machine operations, is easily installed into standard 22mm diameter cut-outs and connected with simple screw-clamp connections. It is clearly distinguishable visually at a distance thanks to a bright and long lasting LED illumination. It is impact resistant, dust resistant, water resistant and vibration resistant thanks to its IP66 / IP67 / IP69 / IP69K, making it ideal for operation in harsh environments.

SPESIFIKASI
= Main =
1. Range of product : Harmony XB4
2. Product or component type : Pilot light
3. Device short name : XB4
4. Bezel material : Chromium plated metal
5. Fixing collar material : Zamak
6. Mounting diameter : 22.5 mm
7. Head type : Standard
8. Sale per indivisible quantity : 1
9. Shape of signaling unit head : Round
10. Cap/operator or lens colour : Orange
11. Operator additional information : With plain lens
12. Light source : Universal LED
13. Bulb base : Integral LED
14. Light source colour : Orange
15. [Us] rated supply voltage : 230...240 V AC 50/60 Hz
= Complementary =
1. Height : 47 mm
2. Width : 30 mm
3. Depth : 54 mm
4. Terminals description ISO n°1 : (X1-X2)PL
5. Product weight : 0.08 kg
6. Resistance to high pressure washer : 7000000 Pa at 55 °C, distance : 0.1 m
7. Connections - terminals :
- Screw clamp terminals, <= 2 x 1.5 mm² with cable end conforming to IEC 60947-1
- Screw clamp terminals, 1 x 0.22...2 x 2.5 mm² without cable end conforming to IEC 60947-1
8. [Ui] rated insulation voltage : 250 V (pollution degree 3) conforming to IEC 60947-1
9. [Uimp] rated impulse withstand voltage : 4 kV conforming to IEC 60947-1
10. Signalling type : Steady
11. Current consumption : 14 mA
12. Service life : 100000 h at rated voltage and 25 °C
13. Surge withstand : 1 kV conforming to IEC 61000-4-5
14. Device presentation : Complete product
15. Supply voltage limits : 195…264 V AC
= Environment =
1. Protective treatment : TH
2. Ambient air temperature for storage : -40…70 °C
3. Ambient air temperature for operation : -40…70 °C
4. Electrical shock protection class : Class I conforming to IEC 60536
5. IP degree of protection :
- IP66 conforming to IEC 60529
- IP67
- IP69
- IP69K
6. NEMA degree of protection :
- NEMA 13
- NEMA 4X
7. IK degree of protection : IK06 conforming to IEC 50102
8. Standards :
- IEC 60947-1
- IEC 60947-5-1
- UL 508
- CSA C22.2 No 14
- IEC 60947-5-5
- IEC 60947-5-4
- JIS C8201-5-1
- JIS C8201-1
9. Product certifications :
- CSA
- UL listed
10. Vibration resistance : 5 gn (f= 12…500 Hz) conforming to IEC 60068-2-6
11. Shock resistance :
- 30 gn (duration = 18 ms) for half sine wave acceleration conforming to IEC 60068-2-27
- 50 gn (duration = 11 ms) for half sine wave acceleration conforming to IEC 60068-2-27
12. Resistance to fast transients : 2 kV conforming to IEC 61000-4-4
13. Resistance to electromagnetic fields : 10 V/m conforming to IEC 61000-4-3
14. Resistance to electrostatic discharge :
- 6 kV on contact (on metal parts) conforming to IEC 61000-4-2
- 8 kV in free air (in insulating parts) conforming to IEC 61000-4-2
15. Electromagnetic emission : Class B conforming to IEC 55011
