SCHNEIDER HARMONY XB4 PUSH BUTTON METAL FLUSH BLACK GREEN RED TOMBOL TEKAN HITAM HIJAU MERAH, 22MM, SPRING, 1NO / 1NC, XB4BA21 XB4BA31 XB4BA42

XB4BA**
Barang Original Schneider 100% dan Bergaransi Resmi 12 Bulan


PILIHAN PRODUK

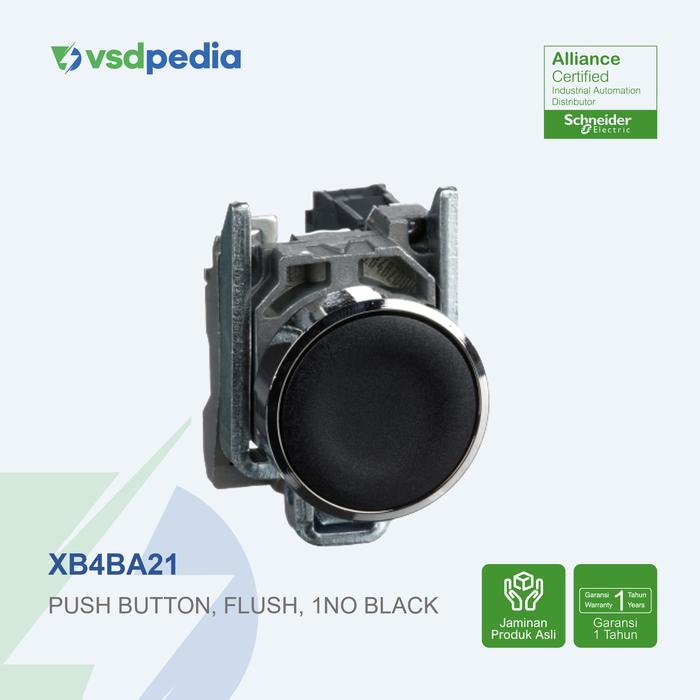

1. 1NO Hitam: XB4BA21

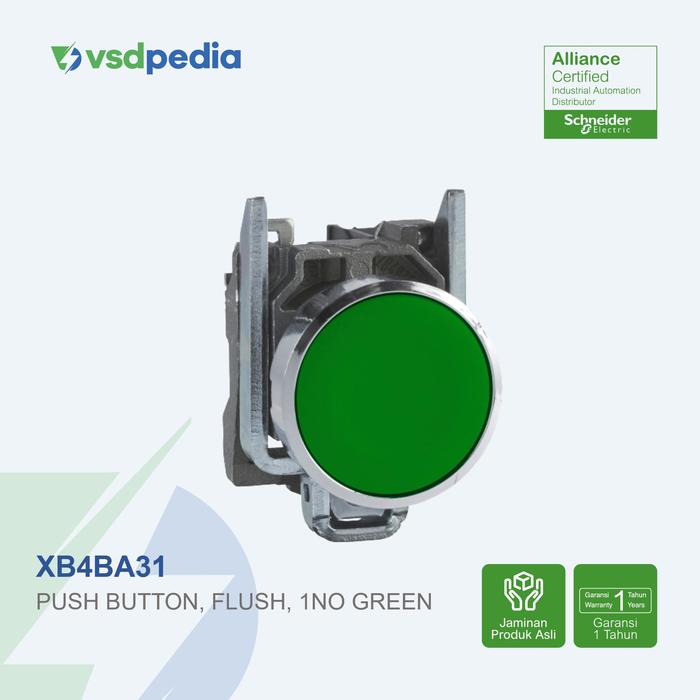

2. 1NO Hijau: XB4BA31

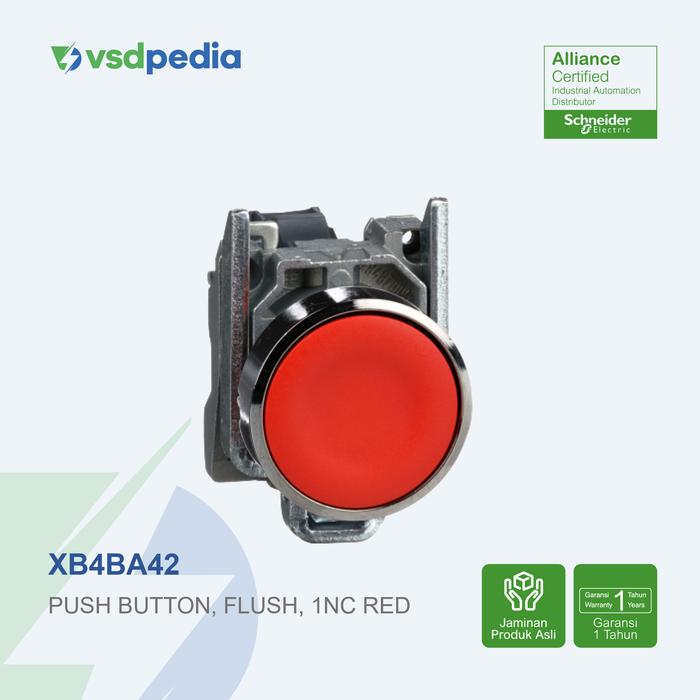

3. 1NC Merah: XB4BA42


TENTANG PRODUK
This Harmony XB4 modular push button operates with a spring return / impulse mechanism. It has a metal bezel. This push button provides an ergonomic interface for controlling your machines. It is easily installed into standard 22mm diameter panel cut-outs and connected to control circuits with classic screw-clamp connections. Its schematic is clearly distinguishable thanks to clear colors and markings, minimizing errors during initial wiring and later maintenance operations. It is impact resistant, dust resistant, water resistant and vibration resistant thanks to its IP66 / IP67 / IP69 / IP69K, making it ideal for operation in harsh environments.


SPESIFIKASI
1. Range of product : Harmony XB4
2. Device short name : XB4
3. Product or component type : Push-button
4. Bezel material : Chromium plated metal
5. Fixing collar material : Zamak
6. Mounting diameter : 22.5 mm
7. Shape of signaling unit head : Round
8. Type of operator : spring return
9. Operator profile : Black/Green/Red (Hitam/Hijau/Merah) flush, unmarked
10. Head type : Standard
11. Contacts type and composition : 1 NO / 1 NC
12. Contact operation : Slow-break
13. Connections - terminals :
- Screw clamp terminals, <= 2 x 1.5 mm² with cable end conforming to IEC 60947-1
- Screw clamp terminals, 1 x 0.22...2 x 2.5 mm² without cable end conforming to IEC 60947-1
