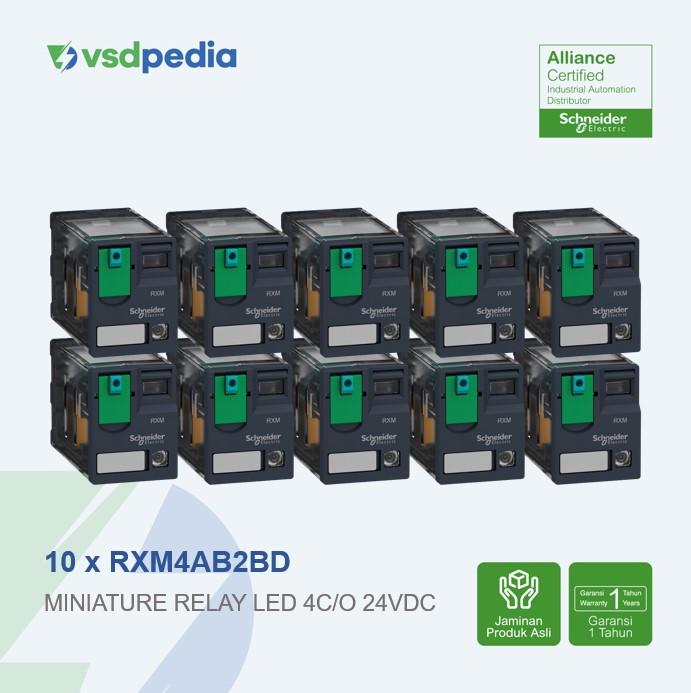

SCHNEIDER MINIATURE RELAY LED 4C/O 24VDC RXM4AB2BD x 10
Terjual 100+
bintang 5 (12 rating)
Rp1.033.467
diskon 43%
Harga sebelum diskon Rp1.813.100
- Kondisi: Baru
- Berat Satuan: 500 g
- Min. Beli: 1 Buah
- Kategori: Relay
- Etalase: Bundling RXM
RXM4AB2BD (BUNDLE 10 PC)
Miniature Plug-In Relay - Harmony RXM 4 C/O 24 V DC 6A With LED
Barang Original Schneider 100% dan Bergaransi Resmi 12 Bulan
TENTANG PRODUCT
RXM miniature relays are part of Harmony Electromechanical Relays. This is a plug in relay to be mounted on a RXZE socket. It is a 4 C/O relay with current rating of 6A, control circuit voltage of 24 V DC. It also offers one-step loackable test button and mechanical indicator for contact status. The testbutton is activated momentarily by pushing the blue pushbutton on the front and locked by flipping up the green part. The mechanical indicator is next to the testbutton, where an orange flag indicates the relay contact status. A green LED on the front will illuminate when the relay is on. Status display with LED: clearly signal both in the day and night. Its design is fit for industrial machines, packaging, textile, HVAC, automation control panels, low/medium voltage switchgear, motor controls, PLC Interfaces, power supplies, building or medical equipment, lighting controls. It is a green premium product and conforms to international standard and certifications like IEC, CE, UL, CSA, EAC, Lloyd's, RoHS and REACH. RXM Relay should be used with a RXZE socket (screw clamp, screw connector, push-in terminal). To protect against vibrations, plastic/metal clamp can be added to the socket. Protection modules and marking legend are also available. It is sold in lots of 10 and reference includes relay only. The RXM plug-in relays are a series of industrial plug-in relays designed for both simple and complex automation systems and available with 2 CO (12A), 3 CO (10A), 4 CO (6A) contacts, 4 CO (3A) low level contacts.
SPESIFIKASI
= Main =
1. Range of product : Harmony Electromechanical Relays
2. Series name : Miniature
3. Product or component type : Plug-in relay
4. Device short name : RXM
5. Contacts type and composition : 4 C/O
6. [Uc] control circuit voltage : 24 V DC
7. Status LED : With
8. Control type : Lockable test button
9. Continuous output current : 5 A
= Complementary =
1. [Uimp] rated impulse withstand voltage : 2.5 kV during 1.2/50 µs
2. [Ie] rated operational current :
- 3 A at 28 V (DC) NC conforming to IEC
- 3 A at 250 V (AC) NC conforming to IEC
- 6 A at 28 V (DC) NO conforming to IEC
- 6 A at 250 V (AC) NO conforming to IEC
- 6 A at 277 V (AC) conforming to UL
- 8 A at 30 V (DC) conforming to UL
3. Minimum switching capacity : 170 mW at 10 mA, 17 V
4. Electrical durability : 100000 cycles for resistive load
5. operate time : 20 ms
6. average coil resistance : 650 Ohm at 20 °C +/- 10 %
7. Rated operational voltage limits : 19.2...26.4 V DC
8. [Ui] rated insulation voltage :
- 250 V conforming to IEC
- 300 V conforming to CSA
- 300 V conforming to UL
9. Maximum switching voltage : 250 V conforming to IEC
10. Drop-out voltage threshold : >= 0.1 Uc
11. Load current :
- 6 A at 250 V AC
- 6 A at 28 V DC
12. Maximum switching capacity : 1500 VA/168 W
13. CAD overall height : 82.8 mm
14. CAD overall depth : 80.35 mm
15. Average coil consumption : 0.9 W
16. Mechanical durability : 10000000 cycles
17. Safety reliability data : B10d = 100000
18. Operating rate :
- <= 1200 cycles/hour under load
- <= 18000 cycles/hour no-load
19. Utilisation coefficient : 20 %
20. reset time : 20 ms
21. Dielectric strength :
- 1300 V AC between contacts with micro disconnection
- 2000 V AC between coil and contact with basic insulation
- 2000 V AC between poles with basic insulation
22. Protection category : RT I
23. pollution degree : 2
24. Operating position : Any position
25. Test levels : Level A group mounting
26. Device presentation : Complete product
27. Contacts material : AgNi
28. Shape of pin : Flat
29. Product weight : 0.037 kg
= Environment =
1. Ambient air temperature for operation : -40…55 °C
2. IP degree of protection : IP40 conforming to IEC 60529
3. Standards :
- IEC 61810-1
- UL 508
- CSA C22.2 No 14
4. Product certifications :
- UL
- Lloyd's
- CE
- CSA
- GOST
- IECEE CB Scheme
5. Ambient air temperature for storage : -40…85 °C
6. Vibration resistance :
- 3 gn, amplitude = +/- 1 mm (f = 10…150 Hz)5 cycles in operation
- 5 gn, amplitude = +/- 1 mm (f = 10…150 Hz)5 cycles not operating
7. Shock resistance :
- 10 gn for in operation
- 30 gn for not operating
Miniature Plug-In Relay - Harmony RXM 4 C/O 24 V DC 6A With LED
Barang Original Schneider 100% dan Bergaransi Resmi 12 Bulan
