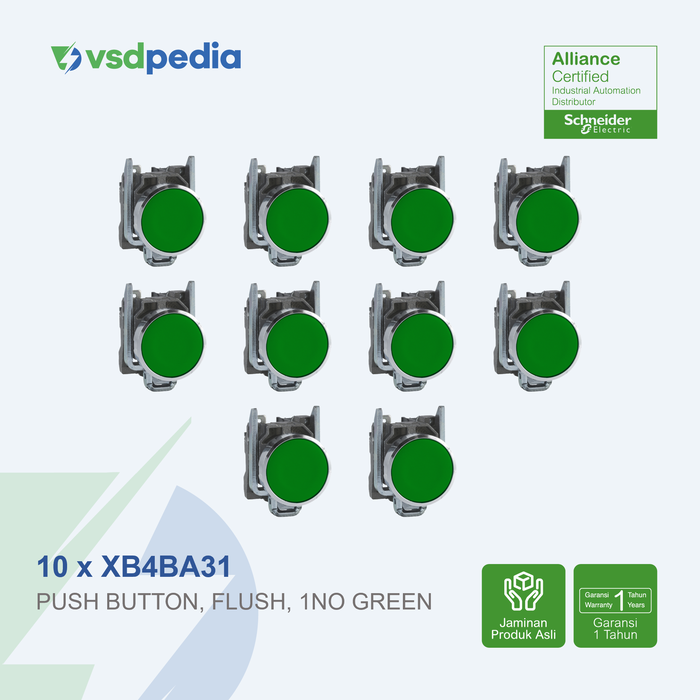

Schneider PUSHBUTTON XB4BA31 x 10

XB4BA31 (BUNDLE 10 PC)
Green Flush Complete Pushbutton ø22 Spring Return 1 N/O "Unmarked"

Barang Original Schneider 100% dan Bergaransi Resmi 12 Bulan

TENTANG PRODUCT
This Harmony XB4 modular green push button operates with a spring return / impulse mechanism. It has a metal bezel. This push button provides an ergonomic interface for controlling your machines. It is easily installed into standard 22mm diameter panel cut-outs and connected to control circuits with classic screw-clamp connections. Its schematic is clearly distinguishable thanks to clear colors and markings, minimizing errors during initial wiring and later maintenance operations. It is impact resistant, dust resistant, water resistant and vibration resistant thanks to its IP66 / IP67 / IP69 / IP69K, making it ideal for operation in harsh environments.

SPESIFIKASI
= Main =
1. Range of product : Harmony XB4
2. Device short name : XB4
3. Product or component type : Push-button
4. Bezel material : Chromium plated metal
5. Fixing collar material : Zamak
6. Mounting diameter : 22.5 mm
7. Sale per indivisible quantity : 1
8. Shape of signaling unit head : Round
9. Type of operator : spring return
10. Operator profile : Green flush, unmarked
11. Head type : Standard
12. Contacts type and composition : 1 NO
13. Contact operation : Slow-break
14. Connections - terminals :
- Screw clamp terminals, <= 2 x 1.5 mm² with cable end conforming to IEC 60947-1
- Screw clamp terminals, 1 x 0.22...2 x 2.5 mm² without cable end conforming to IEC 60947-1
= Complementary =
1. Height : 47 mm
2. Width : 30 mm
3. Depth : 52 mm
4. Terminals description ISO n°1 : (13-14)NO
5. Product weight : 0.08 kg
6. Resistance to high pressure washer : 7000000 Pa at 55 °C, distance : 0.1 m
7. Contacts usage : Standard contacts
8. Positive opening : Without
9. Operating travel :
- 2.6 mm (NO changing electrical state)
- 4.3 mm (total travel)
10. Operating force : 3.8 N NO changing electrical state
11. Mechanical durability : 10000000 cycles
12. Tightening torque : 0.8…1.2 N.m conforming to IEC 60947-1
13. Shape of screw head :
- Cross compatible with Philips no 1 screwdriver
- Cross compatible with pozidriv No 1 screwdriver
- Slotted compatible with flat Ø 4 mm screwdriver
- Slotted compatible with flat Ø 5.5 mm screwdriver
14. Contacts material : Silver alloy (Ag/Ni)
15. Short-circuit protection : 10 A cartridge fuse type gG conforming to IEC 60947-5-1
16. [Ith] conventional free air thermal current : 10 A conforming to IEC 60947-5-1
17. [Ui] rated insulation voltage : 600 V (pollution degree 3) conforming to IEC 60947-1
18. [Uimp] rated impulse withstand voltage : 6 kV conforming to IEC 60947-1
19. [Ie] rated operational current :
- 3 A at 240 V, AC-15, A600 conforming to IEC 60947-5-1
- 6 A at 120 V, AC-15, A600 conforming to IEC 60947-5-1
- 0.1 A at 600 V, DC-13, Q600 conforming to IEC 60947-5-1
- 0.27 A at 250 V, DC-13, Q600 conforming to IEC 60947-5-1
- 0.55 A at 125 V, DC-13, Q600 conforming to IEC 60947-5-1
- 1.2 A at 600 V, AC-15, A600 conforming to IEC 60947-5-1
20. Electrical durability :
- 1000000 cycles, AC-15, 2 A at 230 V, operating rate
- 1000000 cycles, AC-15, 3 A at 120 V, operating rate
- 1000000 cycles, AC-15, 4 A at 24 V, operating rate
- 1000000 cycles, DC-13, 0.2 A at 110 V, operating rate
- 1000000 cycles, DC-13, 0.5 A at 24 V, operating rate
21. Electrical reliability :
- Λ < 10exp(-6) at 5 V and 1 mA in clean environment conforming to IEC 60947-5-4
- Λ < 10exp(-8) at 17 V and 5 mA in clean environment conforming to IEC 60947-5-4
22. Device presentation : Complete product
= Environment =
1. Protective treatment : TH
2. Ambient air temperature for storage : -40…70 °C
3. Ambient air temperature for operation : -40…70 °C
4. Overvoltage category : Class I conforming to IEC 60536
5. IP degree of protection :
- IP66 conforming to IEC 60529
- IP67
- IP69
- IP69K
6. NEMA degree of protection :
- NEMA 13
- NEMA 4X
7. IK degree of protection : IK06 conforming to IEC 50102
8. Standards :
- JIS C8201-5-1
- IEC 60947-5-5
- UL 508
- IEC 60947-1
- IEC 60947-5-4
- IEC 60947-5-1
- CSA C22.2 No 14
- JIS C8201-1
9. Product certifications :
- CSA
- LROS (Lloyds register of shipping)
- BV
- UL listed
- DNV
10. Vibration resistance : 5 gn (f= 2…500 Hz) conforming to IEC 60068-2-6
11. Shock resistance :
- 30 gn (duration = 18 ms) for half sine wave acceleration conforming to IEC 60068-2-27
- 50 gn (duration = 11 ms) for half sine wave acceleration conforming to IEC 60068-2-27
