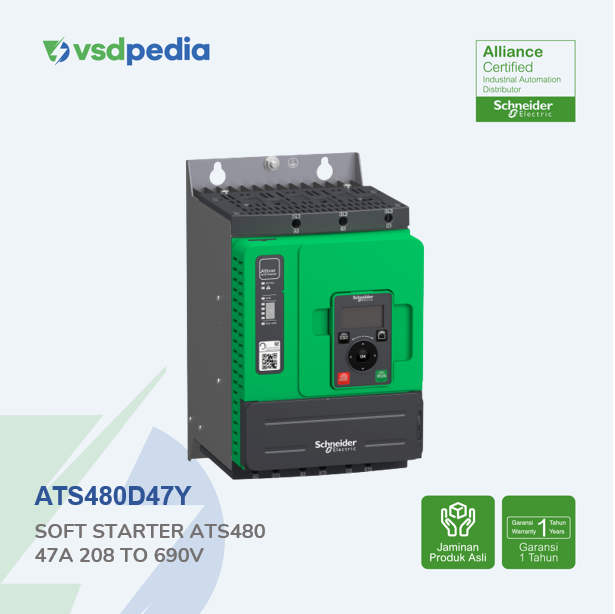

SCHNEIDER SOFT STARTER ATS480 47A 208-690VAC 22kW ATS480D47Y PENGGANTI ATS48D47Q

ATS480D47Y
Soft Starter, Altistart 480, 47A, 208 to 690V AC, Control Supply 110 to 230V AC

100% Produk Original Schneider dan Garansi Resmi 12 Bulan

TENTANG PRODUK
Altivar Soft Starter ATS480 is intended to start and stop asynchronous motors supplied from 208V to 690V. It meets the requirements of the most demanding applications in normal and heavy duty. With an operational rated current of 47A in normal duty, it supplies motor from 11kW to 37kW according to mains voltage. Designed for digitization, connected, optimized to meet cybersecurity standard, it simplifies project execution and maximizes the availability of applications. Its torque control (TCS) masters acceleration and deceleration. It efficiently stops high inertia application thanks to the dynamic braking and DC injection. It could be connected in-line or inside the delta to reduce its operational current. The embedded test routine simplifies the commissioning inside the delta. Its dimensions are 160mm (width) x 203mm (depth) x 275mm (height) and it weighs 4,9kg. Altivar Soft Starter ATS480 is designed to address process, infrastructures and industrial machines. It conforms to IEC/EN60947-4-1. It is certified CE, cULus, UKCA, CCC, RCM, EAC, and Marine certified DNV, ABS, BV and CCS. Display terminals, remote mounting kit, communication modules are common with Altivar Drives. Line chokes, DNV kits are common with ATS48. ATS480 is compatible with ATS48, it has same footprint, fixing, torque control algorithm, I/O, menus… The integration of Altivar Soft Starter ATS480 in EcoStruxure drastically simplifies architecture selection, detailed design and execution in automation and electrical systems. It is a Green Premium product designed to take the environmental considerations beyond current directives and regulations, compliant with RoHS and REACH.

SPESIFIKASI
= Main =
1. Range of product : Altivar Soft Starter ATS480
2. Product or component type : Soft starter
3. Product destination : Asynchronous motors
4. Product specific application : Process and infrastructures
5. Device short name : ATS480
6. Network number of phases : 3 phases
7. Utilisation category :
- AC-3A
- AC-53A
8. Ue power supply voltage : 208...690 V - 15...10 %
9. power supply frequency : 50...60 Hz - 20...20 %
10. [Ie] rated operational current : Normal duty: 47.0 A (at
11. rated current in heavy duty : 38.0 A at 40 °C for heavy duty
12. Torque control : True
13. IP degree of protection : IP20
14. Motor power kW :
- 11.0 kW at 230 V in the motor supply line normal duty
- 9.0 kW at 230 V in the motor supply line heavy duty
- 22.0 kW at 400 V in the motor supply line normal duty
- 18.5 kW at 400 V in the motor supply line heavy duty
- 22.0 kW at 440 V in the motor supply line normal duty
- 18.5 kW at 440 V in the motor supply line heavy duty
- 30.0 kW at 500 V in the motor supply line normal duty
- 22.0 kW at 500 V in the motor supply line heavy duty
- 30.0 kW at 525 V in the motor supply line normal duty
- 22.0 kW at 525 V in the motor supply line heavy duty
- 37.0 kW at 660 V in the motor supply line normal duty
- 30.0 kW at 660 V in the motor supply line heavy duty
- 37.0 kW at 690 V in the motor supply line normal duty
- 30.0 kW at 690 V in the motor supply line heavy duty
- 22.0 kW at 230 V to the motor delta terminals normal duty
- 18.5 kW at 230 V to the motor delta terminals heavy duty
- 45.0 kW at 400 V to the motor delta terminals normal duty
- 30.0 kW at 400 V to the motor delta terminals heavy duty
15. Motor power hp :
- 10.0 hp at 208 V heavy duty
- 15.0 hp at 230 V normal duty
- 10.0 hp at 230 V heavy duty
- 30.0 hp at 460 V normal duty
- 25.0 hp at 460 V heavy duty
- 40.0 hp at 575 V normal duty
- 30.0 hp at 575 V heavy duty
16. Option card :
- Communication module for Profibus DP V1
- Communication module for Modbus TCP/EtherNet/IP
- Communication module for CANopen daisy chain
- Communication module for CANopen Sub-D
- Communication module for CANopen open style
