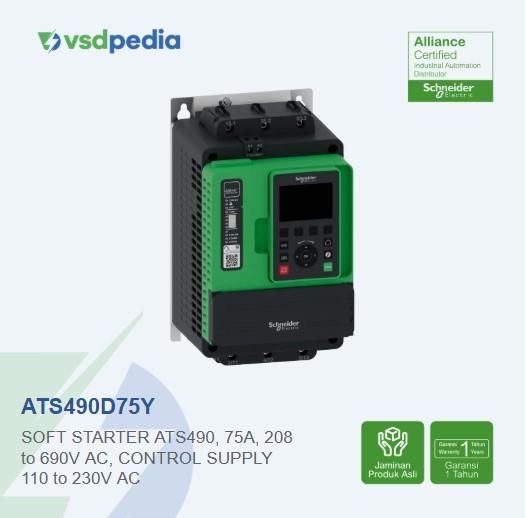

SCHNEIDER SOFT STARTER ATS490 75A 208-690VAC 37kW ATS490D75Y

ATS490D75Y
Soft Starter, Altivar Soft Starter ATS490, 75A, 208 to 690V AC, Control Supply 110 to 230V AC


100% Produk Original Schneider dan Garansi Resmi 12 Bulan


TENTANG PRODUK
This soft starter belongs to the Altivar Soft Starter ATS490 range, which is intended to smoothly start and stop asynchronous motors supplied from 208 to 690V. With an operational rated current of 75A in normal duty, it supplies motor from 15 to 55 kW according to mains voltage. With an efficiency of 99.5%, dedicated application functions, and complete monitoring with data reporting, ATS490 enables advanced motor management. Certified cybersecurity, safe Torque Off, and condition monitoring features increase uptime, reduce operational expenditures, and simplify project design. ATS490 provides comprehensive system monitoring, including the motor, application, power and energy with an accuracy greater than 95%. ATS490 has a native Ethernet port for Modbus TCP or EtherNet/IP and a Modbus serial link. Dimensions are 160mm (width), 234mm (depth), 289mm (height) and it weighs 7kg. ATS490 uses plastic with more than 20% bio-based content, and aluminum is ASI-certified. Altivar Soft Starter ATS490 meets the requirements of applications such as pumps, fans, compressors, conveyors, mixers, cutters, grinders, crushers… It conforms to IEC/EN 60947-4-2 and has received CE, cULus, UKCA, RCM, CCC, and DNV certifications. Some accessories are available, like an IP65 remote mounting kit to mount the graphic display terminal on the enclosure door and communication modules to extend the connectivity to other protocols. The packaging uses recycled cardboard and lower single-use plastic. The ATS490 soft starters shall be mounted vertically inside an enclosure. The built-in and innovative features of ATS490 improve competitiveness, operational resilience, and equipment sustainability. ATS490 delivers excellence in mastering applications and costs, even for the most demanding requirements.




SPESIFIKASI
= Main =

Range of Product : Altivar Soft Starter ATS490
Product or Component Type : Soft starter
Product destination : Asynchronous motors
Product Specific Application : Process and infrastructures
Device short name : ATS490
Phase : 3 phase
Utilisation category : AC-3A AC-53A
Ue power supply voltage : 208...690 V AC - 15...10 %)
power supply frequency : 50...60 Hz - 20...20 %
[Ie] rated operational current : Normal duty 75 A in line 104 °F (40 °C))
Service factor at Ie : 100
rated current in heavy duty : 62 A at 104 °F (40 °C) heavy duty
IP Degree of Protection : IP20
Motor power kW : 18.5 kW 230 V in the motor supply line normal duty 37 kW 400 V in the motor supply line normal duty 37 kW 440 V in the motor supply line normal duty 45 kW 500 V in the motor supply line normal duty 45 kW 525 V in the motor supply line normal duty 55 kW 660 V in the motor supply line normal duty 55 kW 690 V in the motor supply line normal duty 15 kW 230 V in the motor supply line heavy duty 30 kW 400 V in the motor supply line heavy duty 30 kW 440 V in the motor supply line heavy duty 37 kW 500 V in the motor supply line heavy duty 37 kW 525 V in the motor supply line heavy duty 45 kW 660 V in the motor supply line heavy duty 45 kW 690 V in the motor supply line heavy duty 37 kW 230 V to the motor delta terminals normal duty 55 kW 400 V to the motor delta terminals normal duty 30 kW 230 V to the motor delta terminals heavy duty 55 kW 400 V to the motor delta terminals heavy duty
Maximum Horse Power Rating : 20 hp 208 V normal duty 25 hp 230 V normal duty 50 hp 460 V normal duty 60 hp 575 V normal duty 15 hp 208 V heavy duty 20 hp 230 V heavy duty 40 hp 460 V heavy duty 50 hp 575 V heavy duty
With safety function Safe torque off (STO) : True
Safe Torque Off (STO) : STO (safe torque off): SIL 1 conforming to IEC 61508 STO (safe torque off): PL c/category 2 conforming to ISO 13849
Cybersecurity functions : True
Cybersecurity level and standard : Security level (SL) 1 IEC 62443-4-2
Communication Port Protocol : Modbus serial Modbus TCP/EtherNet/IP
Option card : Communication module CANopen daisy chain Communication module CANopen Sub-D Communication module CANopen open style Communication module Profibus DP V1 Communication module PROFINET
