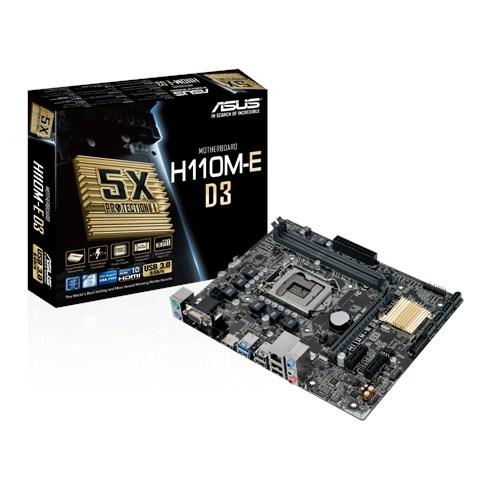

MAINBOARD ASUS H110M-E D3

CPU
Intel Socket 1151 for 6th Generation Core i7/Core i5/Core i3/Pentium/Celeron Processors
Supports Intel 14 nm CPU
Supports Intel Turbo Boost Technology 2.0
* The Intel Turbo Boost Technology 2.0 support depends on the CPU types.
* Refer to www.asus.com for CPU support list
Chipset
Intel H110
Memori
2 x DIMM, Max. 32GB, DDR3 1866(O.C.)/1600/1333 MHz Non-ECC, Un-buffered Memory
Supports Intel Extreme Memory Profile (XMP)
* Refer to www.asus.com or user manual for the Memory QVL (Qualified Vendors Lists).
* Hyper DIMM support is subject to the physical characteristics of individual CPUs.
* The maximum memory frequency supported varies by processor.
Grafis
Integrated Graphics Processor- Intel HD Graphics support
Dukungan output Multi-VGA : HDMI/RGB port
- Mendukung RGB dengan resolusi maks. 1920 x 1200 @ 60 Hz
- Supports HDMI with max. resolution 4096 x 2160 @ 24 Hz / 2560 x 1600 @ 60 Hz
Maximum shared memory of 1024 MB
Supports Intel InTru 3D, Quick Sync Video, Clear Video HD Technology, Insider
Slot Ekspansi
1 x PCIe 3.0/2.0 x1 (x16 mode)
2 x PCIe 2.0 x1
Storage
Intel H110 Chipset :
4 x SATA 6Gb/s port(s), gray,
Intel Rapid Storage Technology supports*1
LAN
Realtek RTL8111H, 1 x Gigabit LAN Controller(s)
Audio
Realtek ALC887-VD2 8-Channel High Definition Audio CODEC *2
- Supports : Jack-detection, Front Panel Jack-retasking
Audio Feature :
- LED-illuminated design - Brighten up your build with the gorgeous illuminated audio trace path.
- Audio Shielding: Ensures p
