KYORITSU 2200R KYORITSU 2210R KYORITSU 2300R - 2200R

"HARAP KONFIRMASI STOK BARANG, SEBELUM MELAKUKAN ORDER"

NOTED :Battery Tidak Bisa Included Jika Pengiriman Menggunakan Pesawat Karena Ditolak Bandara
Battery Included Jika Menggunakan JNE TRUCKING Ya...

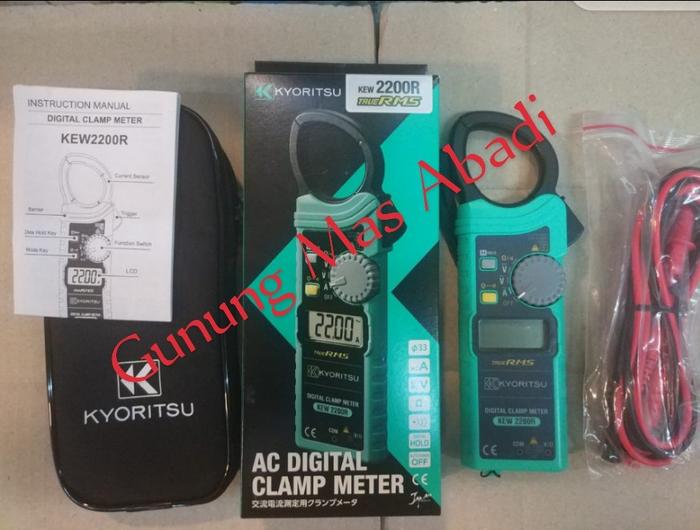

1. Kyoritsu KEW 2200R Digital Clamp Meters

*) RMS
*) AC A 40.00/400.0/1000A (Auto-ranging)
1.5%rdg5dgt (45 - 65Hz)
2.0%rdg5dgt (40 - 1kHz)
*) AC V 4.000/40.00/400.0/600V (Auto-ranging)
1.8%rdg7dgt (45 - 65Hz)
2.3%rdg8dgt (65 - 500Hz)
*) DC V 400.0mV/4.000/40.00/400.0/600V (Auto-ranging)
1.0%rdg3dgt (400mV range is excluded.)
*) 400.0/4.000/40.00/400.0k/4.000/40.00M (Auto-ranging)
2.0%rdg4dgt (0 - 400k)
4.0%rdg4dgt (4M)
8.0%rdg4dgt (40M)
*) Continuity buzzer buzzer sounds below 5030
*) Conductor size 33mm max.
*) Applicable standards IEC 61010-1
CAT IV 300V / CAT III 600V Pollution degree 2 (AC A),
CAT III 300V / CAT II 600V Pollution degree 2 (AC/DC V)
IEC 61010-031, IEC 61010-2-032, IEC 61326 (EMC),
EN 50581 (RoHS)
*) Power source R03/LR03 (AAA) (1.5V) 2
*) Continuous measuring time:
approx. 120 hours (Auto power off: approx. 10 minutes)
*) Dimensions 190(L) 68(W) 20(D)mm
Weight Approx. 120g (including batteries)
*) Accessories 7107A (Test leads), 9160 (Carrying case), R03 (AAA) 2,
Instruction Manual
*) Optional 8008 (Multi-Tran)


2. KYORITSU 2210R FLEXIBLE CLAMP METER

* Flexible and light weight clamp sensor,
* Wide reading range up to 3000A,
* True RMS,
* MIN/MAX function,
* Backlight LCD display,
* IEC 61010-1 (CAT IV 600V / CAT III 1000V).


3. Kyoritsu 2300R Digital Clamp Meter True RMS


disclaimer : 2300r ada packaging lama dan baru, tergantung stoknya

*) True RMS reading is an essential feature for accurate measurement.
*) Non Contact voltage function indicates the presence of AC voltage by warning the user with an audible signal.
*) Set the DC current range to zero in one touch with the Zero Adjust function.
*) Auto power off.

Range Measuring Range Accuracy.
*) Current Measurement AC A 0 to 100.0A
DC A 0 to 100.0A |2.0%rdg5dgt (50/60Hz)
|2.0%rdg5dgt
*) Conductor Size Max 10mm
*) Non Contact Voltage Detect AC voltage
without contacting
with socket wire During voltage detection,
"Hi" flashes and
a buzzer sounds intermittently
*) Dimensions 161.3(L) 40.2(W) 30.3(D)mm
*) Crest Factor 2.5
*) Weight 110g (with batteries)
*) Maximum Digit 1,049
*) Applicable Standards IEC 61010-1 CAT III 300V Pollution Degree 2
*) Power Source R03 (AAA) 2
*) Accessories Carrying Case
R03 (AAA) 2
Instruction Manual
