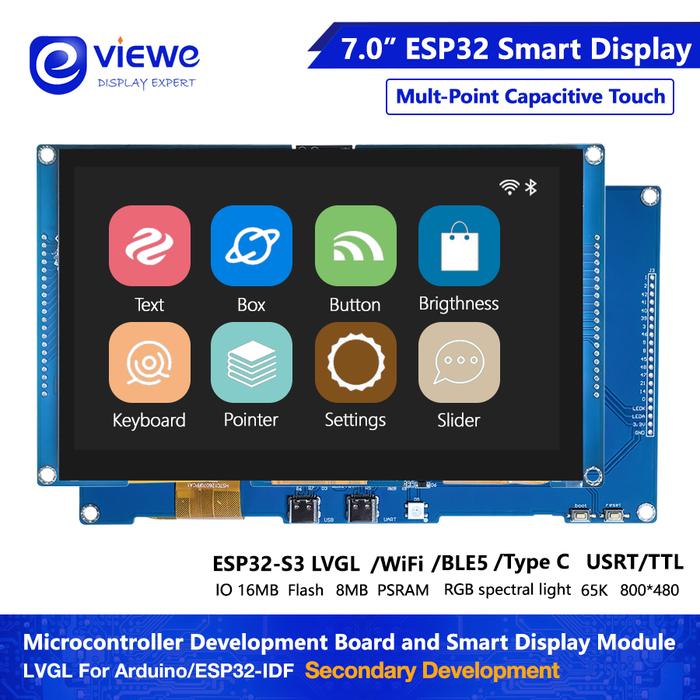

ESP32 S3 Dual Core LVGL 7inch 5inch 4.3inch 4inch HMI 16M Flash Ardu-ino WIFI&Bles Smart Display Screen RGB LCD TFT Module

Model Number : ESP32-7
Origin : Mainland China
Resolution : 800*480
Display Mode : 1
Hign-concerned Chemical : None


Microcontroller development board and smart display module:

1 Features
Brief Info:
1)Two buttons: a reset button and a boot button.
2) Backup IO: download ports and multiple IO leads to use on both sides of the periphery.
3) Power: DC 5V, 300mA
System
1) OS: RTOS2)
2)CPU: ESP32-S3 240Mhz
3) RAM: 8MB
4) Flash: 16MB
5) Interface: UART/USB
6) Support 2.4GHz Wi-Fi. BLE 5. BLE Mesh

Display
1) Size: 7.0 Inch/5 Inch/4.3 Inch/4 Inch
2) Resolution: 800 *480/800 *480/800 *480/480*480
3) Mode: TN/SPI/SPI/SPI
4) Brightness: 300 cd/m2
5) Touch: CTP

Other
1) Operation Temperature: -20-70
2) Storage Temperature:-30-80C

Related downloads-------------------------------------------------------------

ESP32-IDF

https://github.com/VIEWESMART/ESP32-Arduino/tree/main/examples/7.0inch

Ardui-n

https://github.com/VIEWESMART/ESP32-Arduino/tree/main/examples/7.0inch

Please provide email address, contact customer service~~

Application

Home smart device image transmission
Wireless monitoring
Smart agriculture
QR wireless recognition
Wireless positioning system signal
And other IoT applications
