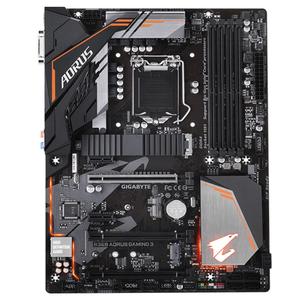

Used Gigabyte B360 AORUS GAMING 3 LGA 1151 DDR4 64G HDMI DVI Desktop PC Motherboard

Brand Name : Gigabyte
Special Function : none
Origin : Mainland China
Certification : weee,UL,CE
Application : Desktop
Form Factor : ATX
Chipset : Intel B360
Socket Type : LGA 1151
Chipset Manufacturer : Intel
Package : No
With CPU : No
Maximum Ram Capacity : 64 GB
Quality Certification : ce,UL
Support Memory Type : DDR4
Usage Scenario : Enthusiast & Overclocking,Gaming,Audio & Video
Storage Interface Type : SATA,M.2 (NVMe)
PCI - E standards : PCI - E 3.0
Back I/O Ports : 1x RJ45,HDMI 1.4,DVI-D
Number of PCI : 2
Onboard LAN : 1x RJ45
Processor compatibility : 8th Intel Core i5,9th Intel Core i3,9th Intel Core i5,8th Intel Core i7,9th Intel Core i9,9th Intel Core i7,8th Intel Core i3
RAID Supported : no
Hign-concerned Chemical : None


Supports 9th and 8th Gen Intel Core Processors
Dual Channel Non-ECC Unbuffered DDR4
New Hybrid Digital PWM Design
Intel CNVi 802.11ac Wave2 2T2R WIFI Upgradable
High Quality Audio Capacitors and Audio Noise Guard with LED Trace Path Lighting
Dual Ultra-Fast M.2 with PCIe Gen3 X4/X2 (1 with Thermal Guard) & SATA interface
RGB FUSION 2.0 with Multi-Zone Digital LED Light Show design
Intel Native USB 3.1 Gen2 USB Type-A
Intel USB 3.1 Gen1 USB Type-C
Intel GbE LAN with cFosSpeed Internet Accelerator Software
CEC 2019 Ready, Save the Power as Easy as One Click
Smart Fan 5 features Multiple Temperature Sensors and Hybrid Fan Headers with FAN STOP
Intel Optane Memory Ready

CPU
Support for 9th and 8th Generation Intel Core i9 processors/Intel Core i7 processors/Intel Core i5 processors/Intel Core i3 processors/Intel Pentium processors/Intel Celeron processors in the LGA1151 package
L3 cache varies with CPU
(Please refer "CPU Support List" for more information.)
Chipset
Intel B360 Express Chipset
Memory
4 x DDR4 DIMM sockets supporting up to 64 GB of system memory
Dual channel memory architecture
Support for DDR4 2666/2400/2133 MHz memory modules
Support for ECC Un-buffered DIMM 1Rx8/2Rx8 memory modules (operate in non-ECC mode)
Support for non-ECC Un-buffered DIMM 1Rx8/2Rx8/1Rx16 memory modules
Support for Extreme Memory Profile (XMP) memory modules
* To support 2666 MHz or XMP memory, you must install a 9th or 8th Generation Intel Core i9/i7/i5 processor.
(Please refer "Memory Support List" for more information.)
Onboard Graphics
Integrated Graphics Processor-Intel HD Graphics support:
1 x DVI-D port, supporting a maximum resolution of 1920x1200@60 Hz
* The DVI-D port does not support D-Sub connection by adapter.
1 x HDMI port, supporting a maximum resolution of 4096x2160@30 Hz
* Support for HDMI 1.4 version and HDCP 2.2.
Maximum shared memory of 1 GB
Actual support may vary by CPU
Audio
Realtek ALC892 codec
High Definition Audio
2/4/5.1/7.1-channel
Support for S/PDIF Out
LAN
Intel GbE LAN chip (10/100/1000 Mbit)
Expansion Slots
1 x PCI Express x16 slot, running at x16 (PCIEX16)
* For optimum performance, if only one PCI Express graphics card is to be installed, be sure to install it in the PCIEX16 slot.
1 x PCI Express x16 slot, running at x4 (PCIEX4)
* The PCIEX4 slot shares bandwidth with the PCIEX1_2/PCIEX1_3 slots. The PCIEX4 slot operates at up to x2 mode when the PCIEX1_2 or PCIEX1_3 slot is populated.
1 x PCI Express x16 slot, running at x1 (PCIEX1_3)
2 x PCI Express x1 slots (PCIEX1_1, PCIEX1_2)
(All of the PCI Express slots conform to PCI Express 3.0 standard.)
1 x M.2 Socket 1 connector for an Intel CNVi wireless module only (CNVI)
* The CNVi connector shares bandwidth with the USB 2.0/1.1 port on the back panel (the one below the LAN port). When a Wi-Fi module is populated in the CNVi connector, the USB 2.0/1.1 port becomes unavailable.
Multi-Graphics Technology
Support for AMD Quad-GPU CrossFire and 2-Way AMD CrossFire technologies
Storage Interface
Chipset:
1 x M.2 connector (Socket 3, M key, type 2242/2260/2280/22110 SATA and PCIe x4/x2 SSD support) (M2A_32G)
1 x M.2 connector (Socket 3, M key, type 2242/2260/2280 SATA and PCIe x2 SSD support) (M2P_16G)
6 x SATA 6Gb/s connectors
* Refer to "1-7 Internal Connectors," for the installation notices for the M.2 and SATA connectors.
Intel Optane Memory Ready
* System Acceleration with Intel Optane Memory enabled on the M2A_32G connector only.
USB
Chipset:
1 x USB 3.1 Gen 2 Type-A port (red) on the back panel
1 x USB Type-C port on the back panel, with USB 3.1 Gen 1 support
4 x USB 3.1 Gen 1 ports (2 ports on the back panel, 2 ports available through the internal USB header)
6 x USB 2.0/1.1 ports (4 ports on the back panel, 2 ports available through the internal USB headers)
Internal I/O Connectors
1 x 24-pin ATX main power connector
1 x 8-pin ATX 12V power connector
1 x CPU fan header
1 x water cooling CPU fan header
2 x system fan headers
1 x system fan/water cooling pump header
2 x digital LED strip headers
2 x digital LED strip power select jumpers
2 x RGB (RGBW) LED strip headers
6 x SATA 6Gb/s connectors
2 x M.2 Socket 3 connectors
1 x front panel header
1 x front panel audio header
1 x USB 3.1
