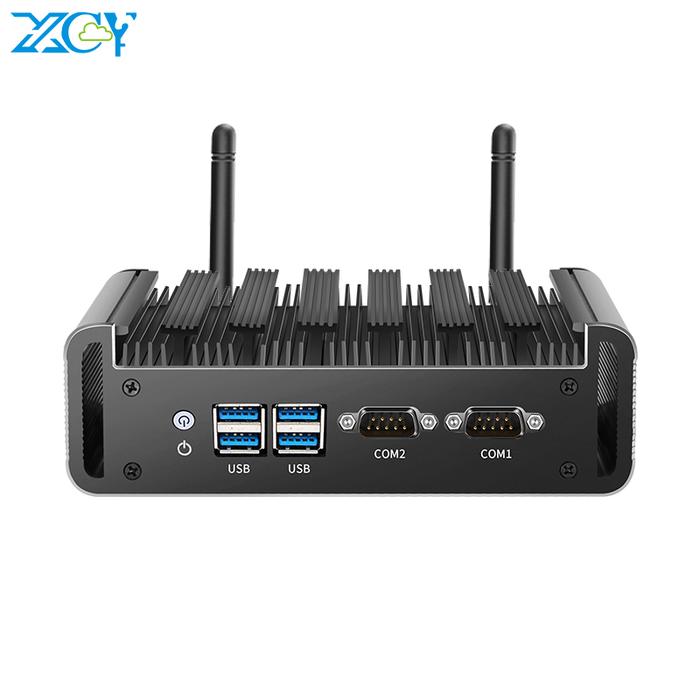

XCY Fanless Mini PC Intel Core i3 4010U i5 4200U i7 4500U 2x RS232 2x GbE LAN HDMI VGA 4x USB Ports Support WiFi Windows Linux

Brand Name : XCY
Model Number : X31Y-2LAN2COM
Hard Drive Capacity : 128GB
Origin : Mainland China
Certification : CE,FCC,RoHS
Type : MINI PC
Memory Capacity : 8GB
Use : Commercial
Graphics Card Type : Integrated Card
Processor Brand : Intel
Processor Main Frequency : Based on CPU
Processor Model : i3-4005U, i5-4200U, i7-4500U
Type : Mini Desktop
Hign-concerned Chemical : None
Dimension : 180x128x55mm


XCY X31Y Mini PC, 4th/5th Gen Intel Core i3 i5 and i7 / Intel Celeron 2955U 3805U Processors, DDR3L RAM, mSATA SSD, 2x Gigabit Ethernet, 2x RS232 Serial Ports, HDMI, VGA, 4x USB Ports
- Support Windows 10, Windows 8, Windows 7, Linux, etc.
- One SODIMM DDR3L memory slot, max to support 8GB
- Dual storage support, one mSATA SSD, one 2.5 inch HDD/SSD
- Support WiFi connected to your network.
- Aluminum chassis, ultra compact 180x128x55mm
- HDMI VGA support independent video output.
- Fanless passive cooling, noiseless experience
- Support Wake up on LAN, automatically power on when power restored after a sudden power loss.

Processors

Intel Celeron 2955U, 2M Cache, 2 cores 2 threads, 1.40GHz

Intel Pentium 3805U, 2M Cache, 2 cores 2 threads, 1.90GHz

Intel Core i3-4005U, 3M Cache, 2 cores, 4 threads, 1.70GHz

Intel Core i3-5005U, 3M cache, 2 cores, 4 threads, 2.00GHz

Intel Corei5-4200U, 3M cache, 2 cores 4 threads, 1.60Ghz up to 2.60 GHz

Intel Core i5-5200U, 3M Cache, 2 cores, 4 threads, 2.20GHz, up to 2.70GHz

Intel Core i7-4500U, 4M Cache, 2 cores, 4 threads, 1.80GHz, up to 3.0GHz

Intel Core i7-5500U, 4M Cache, 2 core 4 threads, 2.40GHz up to 3.00 GHz

Memory

SODIMM DDR3L 1333/1600MHz

Celeron 2955U/Pentium 3805U/i3-4010U/i5-4200U/i7-4500U max supportto 1x 8GB RAM

i3-5005U/i5-5200U/i7-5500U max support 1x 16GB RAM

Storage

Support 1x mSATA SSD ( defaulted install this type hard drive )

Support 1x 2.5 inch SATA HDD/SSD

Graphics

Intel HD Graphics

Network Interfaces

2x GbE RJ45 Realtek 8111E

Expansion

Mini PCI-E for WiFi/Bluetooth module (half height size )

OS Support

Windows7/8/10, WES7/10, Linux/Ubuntu

USB Ports

4x USB3.0 ( or 2x USB3.0 2x USB2.0)

Display Port

1x VGA, 1x HDMI

Support dual monitors independently video output

Serial Ports

2x RS232

Audio Ports

3.5mm combo audio jack 2-in-1

Construction

Fanless passive cooling

Case

AluminumCase

Dimension

180x125x55mm

Netweight

0.8Kg

Operating

Temperature

-20 to +60

RH

5 @30Non-condensing

Power Adapter

Input AC100-240V, Output DC12V-5A/3A

Package List

1x Mini PC

1x AC Adapter

1x Power cord ( EU AU US UK type plug shipped according to buyers address )

1x SATA cable

1x User manual

NOTE:

1. Buy No RAM No SSD option, mini PC comes without WiFi and antennas pre-installed;

2. Buy mini PC with RAM and SSD option, mini PC comes with WiFi and antennas pre-installed;

3. Mini PC comes without 3G/4G LTE module pre-installed, please contact us if you need
