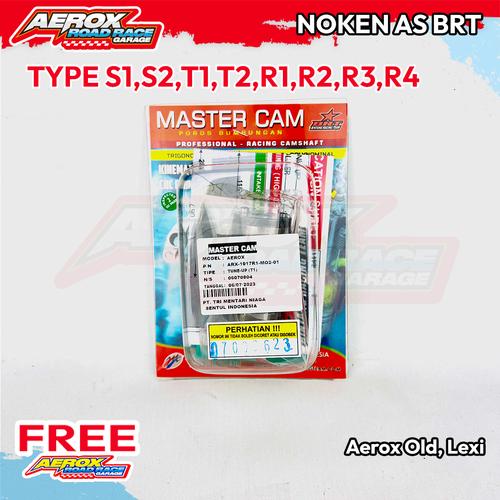

NOKEN AS BRT AEROX OLD LEXI TYPE S1 S2 T1 T2 R1 R2 R3 R4

Noken AS Cam BRT Aerox / LEXI 1000% ORIGINAL BRT Kami Seller RESMI Bintang Racing Team - Grinding CNC - Tidak berisik - Minim Floating pada rpm tinggi - Tenaga naik minimum 1 Hp (pada rpm tertentu) master cam BRT dirancang dengan persamaan matematika gerak yang kompleks, sehingga gerakan RRA mulus dan minim loncatan yang berpotensi floating pada rpm tinggi. Pemasangan PNP Untuk motor : - Aerox (Ready Tipe : S1 S2 T1 T2 R1 R2 R3 R4 Master cam terdiri dari 3 series 1. Seri- S (Standart ), pemakai harian Untuk mesin dalam kondisi : Piston Std dan Ukuran klep std 2. Seri- T (Tune Up ), pemakai harian dan korek harian Untuk mesin dalam kondisi : Piston bore dan Ukuran klep std atau klep lebar 3. (R1 ready) durasi in low = 206 #39;, klep in membuka 0 #39; STMA, menutup 26 #39; TMB durasi in high = 256 #39;, klep in membuka 22 #39; STMA, menutup 54 #39; TMB durasi ex = 254 #39;, klep ex membuka 53 #39; STMB, menutup 21 #39; TMA lift in low = 6.74 mm 106 #39; TMA lift in high = 8.12 mm 115 #39; TMA lift ex 8.30 mm 104 #39; STMA overlap = 21 #39; in low 1 mm, 43 #39; in high 2.51 mm, ex 2.49 mm diameter base = in low 28.00 mm, in high 28.00 mm, ex 25.00 mm (R2 ready) durasi in low = 211 #39;, klep in membuka 1 #39; STMA, menutup 30 #39; TMB durasi in high = 260 #39;, klep in membuka 26 #39; STMA, menutup 54 #39; TMB durasi ex = 257 #39;, klep ex membuka 53 #39; STMB, menutup 24 #39; TMA lift in low = 7.12 mm 108 #39; TMA lift in high = 8.13 mm 113 #39; TMA lift ex 8.33 mm 103 #39; STMA overlap = 25 #39; in low 1.07 mm, 50 #39; in high 2.80 mm, ex 2.68 mm diameter base = in low 28.00 mm, in high 28.00 mm, ex 25.00 mm (R3 ready) durasi in low = 209 #39;, klep in membuka 1 #39; STMA, menutup 28 #39; TMB durasi in high = 255 #39;, klep in membuka 22 #39; STMA, menutup 53 #39; TMB durasi ex = 252 #39;, klep ex membuka 53 #39; STMB, menutup 21 #39; TMA lift in low = 8.07 mm 107 #39; TMA lift in high = 8.92 mm 110 #39; TMA lift ex 8.96 mm 105 #39; STMA overlap = 22 #39; in low 1.07 mm, 43 #39; in high 2.61 mm, ex 2.50 mm diameter base = in low 28.00 mm, in high 28.00 mm, ex 25.00 mm (R4 ready) durasi in low = 207, klep in membuka 1 #39; ST
