OLT EPON 2 Port HIOSO HA7302CST + SFP EPON PX++++ 7db/8db/9db/OLT Only - Hitam, OLT Only

OLT EPON 2 PON HIOSO HA7302CST Include SFP EPON PX+++ 8Dbm (2Pcs)

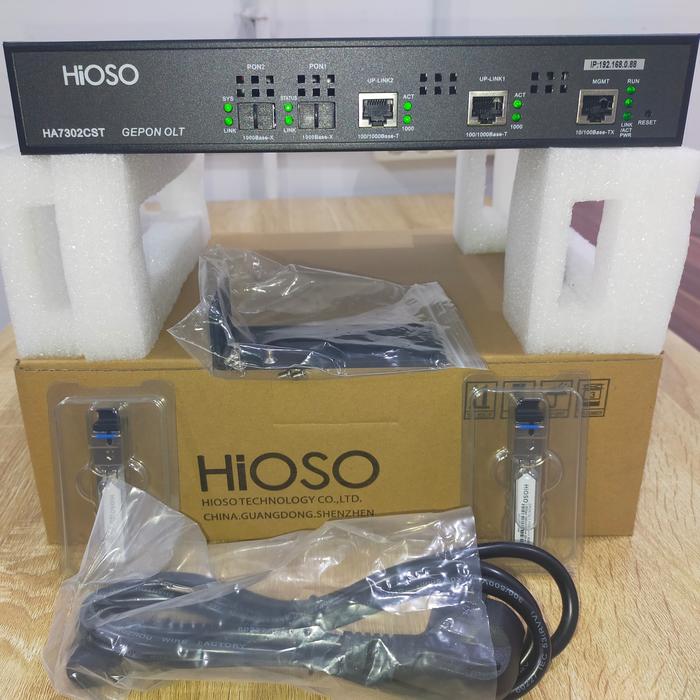

Isi dalam Dus:
- 1 Unit OLT EPON 2 PON HIOSO HA7302CST
- 1 Unit Kabel Power
- 1 Set Kuping Bracket Rackmount
- 1 Unit Manual Book
- 2 Unit SFP PX20++++ 8db/9db/7db/OLT Only
(Garansi Toko 3 Bulan)
.
Overview
HA7302CST is a standalone 2-PON OLT,working with HA7200 series ONU and ODN, to establish a passive optic network. It supports 2-PON, 64 ONUs access (maximum 128). It supports 10～20km transmission distance at the base of high bandwidth, full line speed L2/L3 transition capacity. It supports WEB/SNMP/CLI management.

Features
Supply 2 SFP PON ports, 2 1000M RJ45 uplink ports, 1 10/100M RJ45 management port
Support SNMP management and WEB management
Each PON port support 1.32 split ratio, total 64 ONUs access,maximum 128
Distance can reach 20km under 1:32 split ratio,maximum 1:64
Support to work with HA400/HA7200 series ONUs to establish passive network
1U rack design, inside fan,better for heat dissipating and reliability operating
Apply for town,village fiber network and surveillance, apply for FTTX network, to transmit IP phone, data,IPTV and other IP services access

Parameter Specifications
Operating wavelength : 1310(RX)/1490(TX)
Optical power : +0 ~ +7dBm
Receiving sensitivity : -27dBm
Max distance : 20km
Max splitter ratio : 1:64
Capacity : 2 PON, standard: 64 ONUs maximum:128 ONUs
MAC : 8K
Uplink port : 2 1000M Ethernet RJ45 ports
PON port : 2 SFP fiber ports
Control port : RJ45 console port, to debug the device
MTBF :100,000 hours
