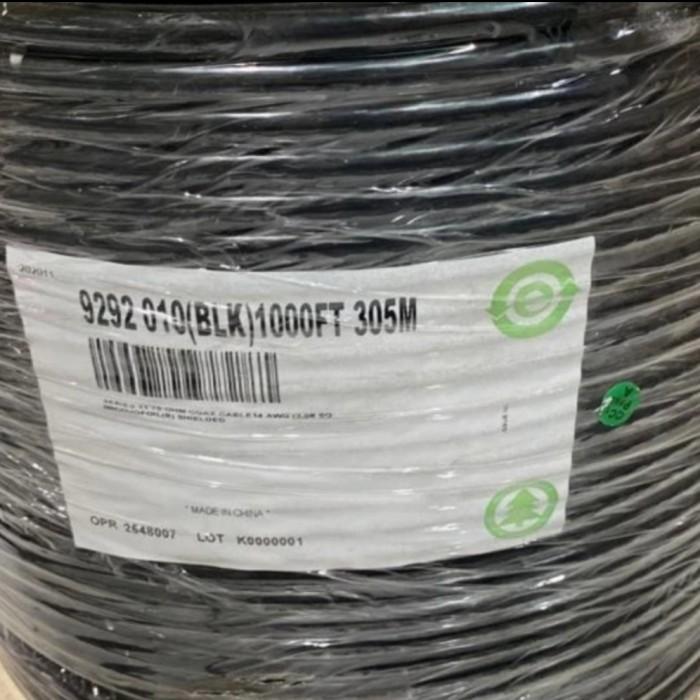

Kabel Coaxial Belden 9292 RG11 75 OHM 14 AWG Best

BELDEN RG11 , 75 Ohm , 14 AWG solid .064 bare copper conductor, gas-injected foam HDPE insulation, Duofoil + tinned copper
braid shield (60% coverage), PVC jacket.

Approx. Wt. lb./ ft. 75
Braid % 60% BRAID COVERAGE
Braid Material BARE COPPER
CSA FT1 VERTICAL FLAME TEST
Coax Construction COAXIAL
Coax Type RG 11
Conductor Diameter 0 INCHES
Conductor Material BARE COPPER
Conductor Size 14 GAUGE AWG
Conductor Stranding/Dia. AWG Type 1/ /14/BC
Conductor Type 14 AWG Solid BC
Conductor Type SOLID CONDUCTOR
Dielectric Material FOAMED HDPE-HI-DENSITY POLYETHYLENE
Dielectric Type/Jkt. FHDPE/PVC
Fire Rating GENERAL PURPOSE (CM, CMG, CMX)
Flooded NO NOT FLOODED OVER BRAID
Imped. Ohms 75
Impedance 75 OHM NOMINAL IMPEDANCE
Insulation Material (O.D. in.) FHDPE/
Jacket Material Color (O.D. in.) PVC/BLK/
Jacket Material PVC-POLYVINYLCHLORIDE, PVC-1
NEC Rating UL LISTED ART 800
Nom. O.D. (in.)
Notes/Special Features -----
Outdoor YES IS OUTDOOR GRADE MATERIAL
RG Type RG11
Rating -----
RoHS Compliant YES
Screen/Shield Type DOUBLE BRAID SHIELD
Shield Coverage Foil + 60% TC Braid
Shield Foil + 60% TC Braid
Jangan lupa tanyakan stok terlebih dahulu sebelum order.
Orderan yang masuk akan segera kami proses secepatnya
Jika ada hal lain yang ingin ditanyakan atau ragu-ragu, bisa tanyakan lewat fitur Chat tokopedia
saat paket diterima, jangan lupa video unboxing ya
