hAP AX3 Mikrotik C53UiG+5HPaxD2HPaxD hAP ax3 Mikrotik hAP ax3

Mikrotik C53UiG+5HPaxD2HPaxD (hAP ax3)

Mikrotik hAP ax3 Our top-of-the-line AX home access point. With all the processing power and speed your household might ever need. Gen 6 wireless, 2.5 Gigabit Ethernet, PoE, WPA3, and more!

Specifications:
Product : C53UiG+5HPaxD2HPaxD
Architecture ARM 64bit
CPU IPQ-6010
CPU core count 4
CPU nominal frequency auto (864 - 1800) MHz
RouterOS license 6
Operating System RouterOS v7
Size of RAM 1 GB
Storage size 128 MB
Storage type NAND
MTBF Approximately 200'000 hours at 25C
Tested ambient temperature -40°C to 70°C
IPsec hardware acceleration Yes

Wireless capabilities
Wireless 2.4 GHz Max data rate 574 Mbit/s
Wireless 2.4 GHz number of chains 2
Wireless 2.4 GHz standards 802.11b/g/n/ax
Antenna gain dBi for 2.4 GHz 3.3
Wireless 2.4 GHz chip model QCN-5022
Wireless 2.4 GHz generation Wi-Fi 6
Wireless 5 GHz Max data rate 1200 Mbit/s
Wireless 5 GHz number of chains 2
Wireless 5 GHz standards 802.11a/n/ac/ax
Antenna gain dBi for 5 GHz 5.5
Wireless 5 GHz chip model QCN-5052
Wireless 5 GHz generation Wi-Fi 6
WiFi speed AX1800

Ethernet
10/100/1000 Ethernet ports 4
Number of 1G Ethernet ports with PoE-out 1
Number of 2.5G Ethernet ports 1

Peripherals
Number of USB ports 1
USB Power Reset Yes
USB slot type USB 3.0 type A
Max USB current (A) 1

Powering
Number of DC inputs 2 (DC jack, PoE-IN)
DC jack input Voltage 12-28 V
Max power consumption 38 W
Max power consumption without attachments 15 W
Cooling type Passive
PoE in Passive PoE
PoE in input Voltage 18-28 V

PoE-out
PoE-out ports Ether 1
PoE out Passive PoE
Max out per port output (input 18-30 V) 0.625 A
Max total out (A) 0.625 A
Total output current 0.625
Total output power 15

Certification & Approvals
Certification CE, FCC, IC, EAC, ROHS

Other
CPU temperature monitor Yes
Mode button Yes

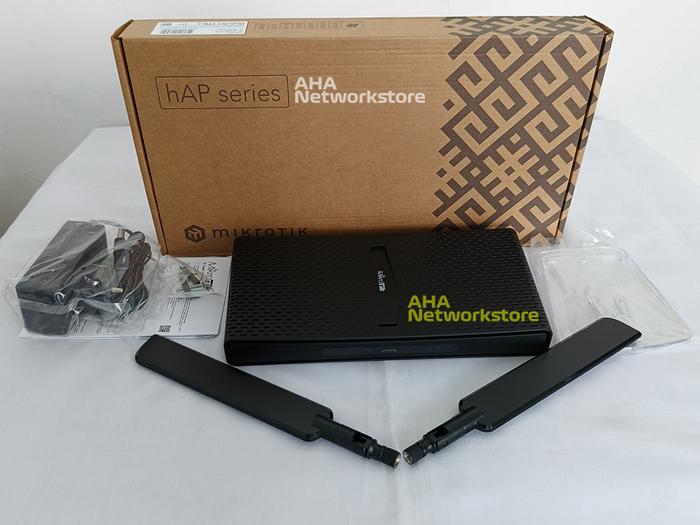

Included parts:
- 24V 1.5A power adapter
- HGO indoor antenna kit
- K-47 wall mount set
- hAP case base
