Mikrotik hEX S Mikrotik 760iGS Mikrotik RB760iGS

# No. Postel : 57417/SDPPI/2018

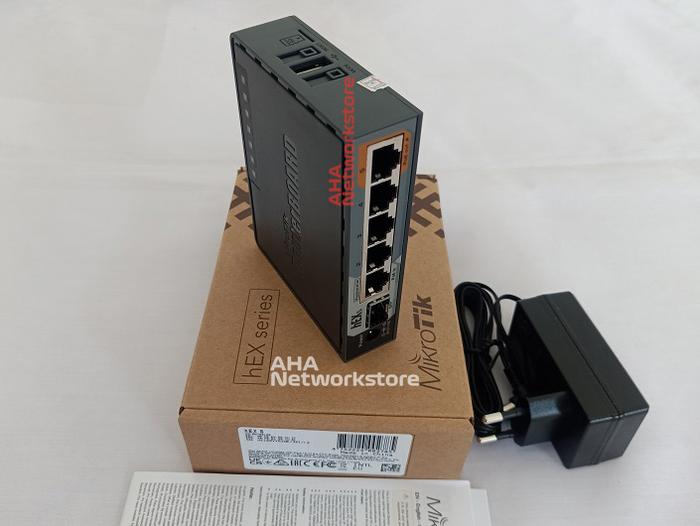

Mikrotik RB760iGS (hex S)

5x Gigabit Ethernet, SFP, Dual Core 880MHz CPU, 256MB RAM, USB, microSD, RouterOS L4, IPsec hardware encryption support and The Dude server package

Product code RB760iGS
Architecture MMIPS
CPU MT7621A
CPU core count 2
CPU nominal frequency 880 MHz
CPU Threads count 4
Dimensions 113 x 89 x 28 mm
License level 4
Operating System RouterOS
Size of RAM 256 MB
Storage size 16 MB
Storage type FLASH
Tested ambient temperature -40C to 70C

Powering
PoE in 802.3af/at
PoE out Passive PoE up to 57V
PoE in input Voltage 12-57 V
Number of DC inputs 2 (DC jack, PoE-IN)
DC jack input Voltage 12-57 V
Max out per port output (input > 30 V) 500 mA
Max out per port output (input < 30 V) 500 mA
Max total out (A) 500 mA
Max power consumption 24 W
Max power consumption without attachments 6 W

Ethernet
10/100/1000 Ethernet ports 5

Fiber
SFP ports 1

Peripherals
Memory card type microSD
Memory Cards 1
Number of USB ports 1
USB Power Reset Yes
USB slot type USB type A
Max USB current (A) 1

Other
PCB temperature monitor Yes
Voltage Monitor Yes
Mode button Yes
