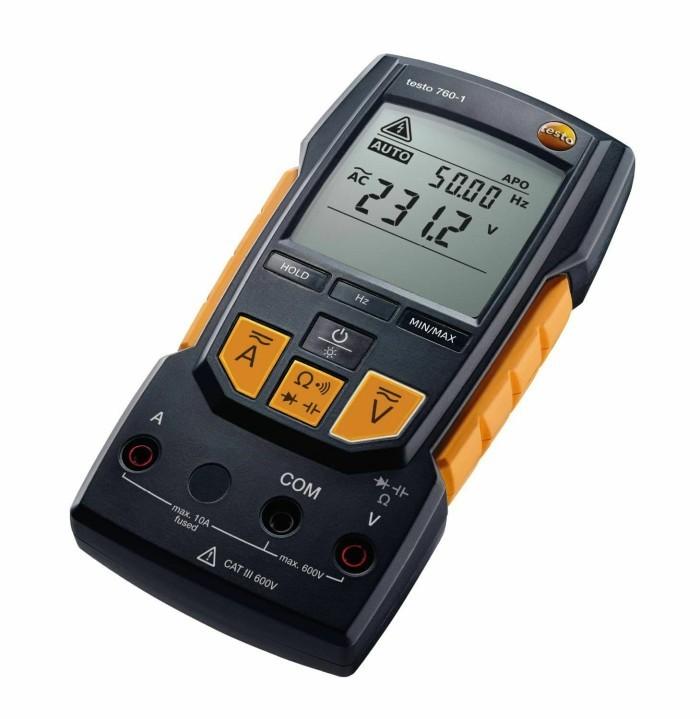

New Testo 760-1 Digital multimeter illuminated display Made In Germany - Orange

Testo 760-1 Digital multimeter illuminated display Made In Germany
Scope of delivery
testo 760-1 multimeter, including batteries and 1 set of measuring cables.
General technical data
Technical data
Protection class IP64
Storage temperature -15 to +60 °C
Overvoltage Category
CAT III 600V; CAT IV 300V
Authorizations CSA; TÜV; CE
Dimensions 167 x 85 x 45 mm
Operating temperature -10 to +50 °C
Top DC voltage
Technical data
Measuring range / Resolution
400 mV / 0.1 mV
4.000 V / 1 mV
40.00 V / 10 mV
400.0 V / 100 mV
600 V / 1 V

Accuracy
± (0.8 % of mv + 3 Digit)
Top
AC voltage
Technical data
Measuring range / Resolution
400 mV / 0.1 mV
4.000 V / 1 mV
40.00 V / 10 mV
400.0 V / 100 mV
600 V / 1 V

Accuracy
± (1.0 % of mv + 3 Digit)
Top
DC current
Technical data
Measuring range / Resolution
4 A / 1 mA
10 A / 10 mA

Accuracy

± (1.5 % of mv + 5 Digit)

Top
AC current
Technical data
Measuring range / Resolution

4 A / 1 mA
10 A / 10 mA

Accuracy

± (1.5 % of mv + 5 Digit)

Top
Resistance
Technical data
Measuring range / Resolution

400.0 Ohm / 0.1 Ohm
4.000 kOhm / 1 Ohm
40.00 kOhm / 10 Ohm
400.0 kOhm / 100 Ohm
4.000 MOhm / 1 kOhm
40.00 MOhm / 10 kOhm

Accuracy

± (1.5 % of mv + 3 Digit)

Top
Capacitance
Technical data
Measuring range / Resolution

51.20 nF / 0.01 nF
512.0 nF / 0.1 nF
5.120 μF / 0.001 μF
51.20 μF / 0.01 μF
100.0 μF / 0.1 μF

Accuracy

± (1.5 % of mv + 5 Digit)

Top
Frequency
Technical data
Measuring range / Resolution

5.120 Hz / 0.001 Hz
51.20 Hz / 0.01 Hz
512.0 Hz / 0.1 Hz
5.120 kHz / 1 Hz
51.20 kHz / 10 Hz
512.0 kHz / 100 Hz

Accuracy

± (0.1 % + 1 Digit)

Top
Instrument and measurement functions
Technical data
Diode test

yes

Continuity Testing

yes

Display ligthing

yes

Hold

yes

MinMax

yes

Display (counts)

4,000
