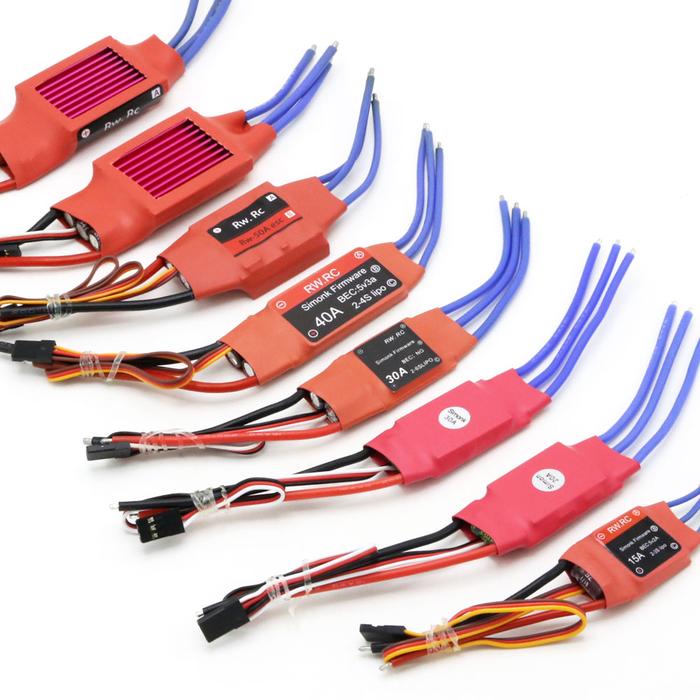

Simonk 10A 12A 15A 20A 30A 40A 50A 70A 80A Firmware Electronic Speed Controller ESC for RC Multicopter Helicopter

This hardware, with the SimonK firmware, gives you the perfect solution for multirotor use:

simonk10A (2-3S):

Weight: 10 g
Size: 23.5x15x 6.1
Input voltage: (2-3 s Lixx).
Drive current: 10A (Max: 13 A/10S)
BEC Input :3V1A
Compatible signal frequency:30Hz - 499Hz


Simonk12A ( 2-3S ):

Weight:12g
Size:28*20*6.1
Input voltage:2-3S Lixx
Drive current:12A (Max:14A/10S)
BEC Input:5V2A
Compatible signal frequency: 30Hz - 499Hz


simonk15A (2-3S):

Weight:15g
Size:50*22*8
Input voltage:2-3S Lixx
Drive current:15A (Max:25A/10S)
BEC Input:5V2A
Compatible signal frequency: 30Hz - 499Hz


simonk20A (2-3S):

Cont Current: 20A
Burst Current: 28A
BEC Output: 5V3A
Li-ion/Li0poly:2-3S,or Ni-MH/Ni-Cd:4-12NIMH
Weight: 21g
Size: 32*24*7mm


simonk30A(2-4S):

Max cont. current: 30A
Peak current: 40A (10s)
Voltage: 2-3S lixx,
BEC: 5V/3A
Size: 50x23x8mm
Weight: ~28g


simonk30A-OPTO (2-6S)
(the ESC need the power from receiver or the flight control)

Weight:25g
Size:50*23*8
Input voltage: (3-6S Lixx)
Drive current:30A (Max:40A/10S)
BEC Input : NO


simonk40A(2-4S):

Weight:35g
Size:68*25*8MM
Input voltage:2-4S
Drive current:40A (Max:50A/10S)
BEC Input: 5V 3A


simonk50A-OPTO (2-6S)
(the ESC need the power from receiver or the flight control)

Weight:48g
Size:53*32*10
Input voltage: (2-6S Lixx)
Drive current:50A (Max:60A/10S)
BEC Input : NO


simonk70A-OPTO (2-6S)
(the ESC need the power from receiver or the flight control)

Weight:70G
Size:78*38*15MM
Input voltage: (2-6S Lixx)
Drive current:70A  (Max:85A/10S)
BEC Input : NO


simonk80A-OPTO (2-6S)
(the ESC need the power from receiver or the flight control)

Weight:75g
Size:78*38*15MM
Input voltage: (2-6S Lixx)
Drive current:50A (Max:90A/10S)
BEC Input : NO



The ESC motor leads are reduced to simple bullet connectors, this allows for quick and clean installation inside your multi rotor. Compatible with 2S to 3S battery


Specifications:
Quantity: 1 pcs
Wheelbase: Screws
Technical parameters: value 2
For Vehicle Type: Airplanes
