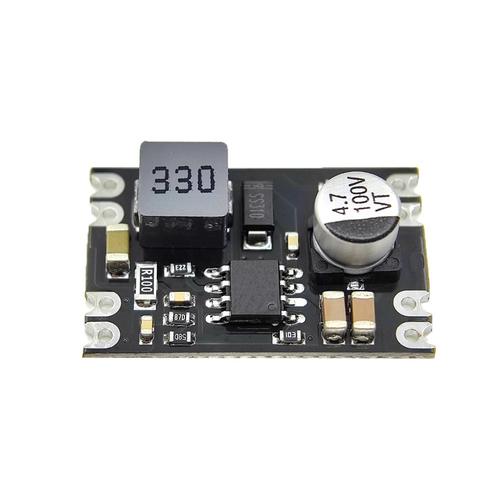

DC-DC Step Down 2A 7V-100V to 5V 9V 12V 24V Buck Converter Module - 9V
Rp31.800
Pilih varian: 9V
- Kondisi: Baru
- Min. Pemesanan: 1 Buah
- Etalase: AC-DC DC-DC
Features:
- Fixed output 5V 9V 12V 24V, input 5-100V with overheat overload shutdown protection
- Motherboard half hole, can be used for mounting, ultra small volume 25.5 * 16.5 * 7MM
- DC-DC voltage reduction module is a device that converts high direct current into low voltage electrical energy The input voltage must exceed the output voltage (with voltage difference), such as 12V to 5V, 24V to 5V
- It adopts microelectronics technology, with high efficiency and small size
Parameters:
- Input voltage: 7V-100V (input must be greater than output)
- Output voltage: 5V/9V/12V/24V
- Output current: 3A (maximum peak) Long term current within 2A
- Conversion efficiency: 96% (highest)
- Output ripple:- Output accuracy: 0.1V
- No-load current: 1mA
- Working temperature: -40 C~+125 C
- Working humidity: 20%~90%
- Size: 25.5 * 16.5 * 7mm (length * width * height)
- Shutdown function: with shutdown function
- Heat dissipation method: natural heat dissipation
- Installation method: solder wire, patch
- With or without isolation: without isolation
- Production process: reflow soldering
- Service life: 35000 hours without faults (output current not exceeding rated value)
- Special process: motherboard half hole
- Working frequency: 1MHz
- Fixed output 5V 9V 12V 24V, input 5-100V with overheat overload shutdown protection
- Motherboard half hole, can be used for mounting, ultra small volume 25.5 * 16.5 * 7MM
- DC-DC voltage reduction module is a device that converts high direct current into low voltage electrical energy The input voltage must exceed the output voltage (with voltage difference), such as 12V to 5V, 24V to 5V
- It adopts microelectronics technology, with high efficiency and small size
Parameters:
- Input voltage: 7V-100V (input must be greater than output)
- Output voltage: 5V/9V/12V/24V
- Output current: 3A (maximum peak) Long term current within 2A
- Conversion efficiency: 96% (highest)
- Output ripple:- Output accuracy: 0.1V
- No-load current: 1mA
- Working temperature: -40 C~+125 C
- Working humidity: 20%~90%
- Size: 25.5 * 16.5 * 7mm (length * width * height)
- Shutdown function: with shutdown function
- Heat dissipation method: natural heat dissipation
- Installation method: solder wire, patch
- With or without isolation: without isolation
- Production process: reflow soldering
- Service life: 35000 hours without faults (output current not exceeding rated value)
- Special process: motherboard half hole
- Working frequency: 1MHz
