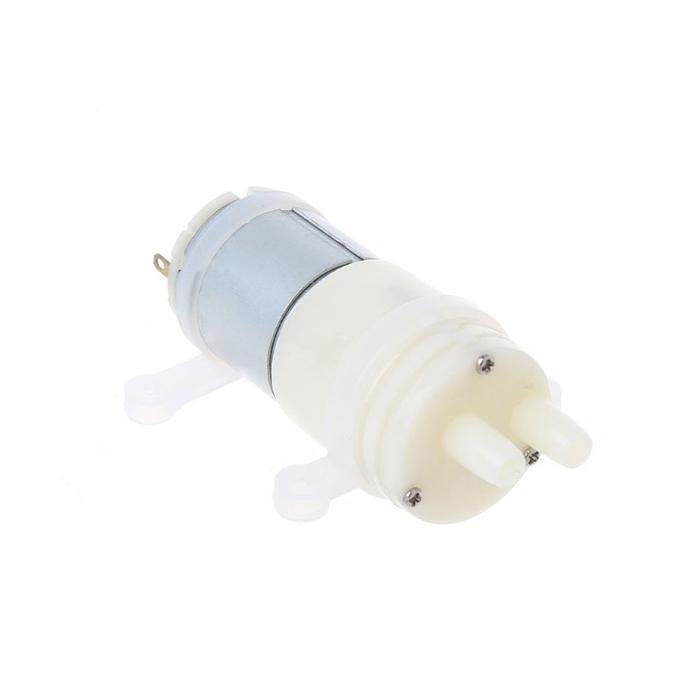

Pompa Air DC12V model diafragma..simple dan mudah dipakai.
Tidak perlu dipancing dengan air untuk hisapan awal.
Cocok untuk project controller / arduino.
Features:
- Pump Size: 90 mm * 40 mm * 35 mm
- Weight: 106g
- Working voltage: DC12V
- working current: 0.5-0.7A
- Empty load current: 0.18A
- Max suction: 2m
- Outlet diameter: diameter 6 mm, an outer diameter of 9 mm
- Traffic: 1.5-2L / Min (approx), the maximum suction: 2 meters
- Lift : Vertical up to 3 meters
- Life: up to 2500H, water temperature: up to 80degrees
- when Voltage 6V : power is 6W / H, 6-12v..5w - 10w
- installation steps as the picture
Utilization
- Household appliances, drinking water equipment, tea sets, coffee machine, coke, fruit juice machine,
milk machine, dishwashers, disinfection machine
- Aquarium equipment, bonsai
- Electronic equipment, medical apparatus and instruments
- Spraying equipment, spray device, electric sprayer
- Water treatment equipment, purification equipment, filter, cooling equipment, cleaning equipment
- Ships, yachts, water desalination, vehicles, bath, toilet, health, environmental protection, etc.
