Programmer Downloader Flasher Burner ESP8266 ESP-WROOM-32 ESP32-WROVER - ESP32-WROVER

Downloader is for modules such as ESP-12S/ESP-12F/ESP-12E/ESP-07/ESP-07S. When the programming button is pressed, the blue programming indicator will light and the IOQ pin of the ESP8266 module will be pulled low.

Compatibility :
- ESP-12E (ESP12E)
- ESP-12F (ESP12F)
- ESP-12S (ESP12S)
- ESP-07 (ESP07)
- ESP-07S (ESP07S)

Downloader is for ESP32-WROOM modules. When the programming button is pressed, the blue programming indicator will light and the IOQ pin of the ESP32 module will be pulled low.

Compatibility :
- ESP32-WROOM-32
- ESP32-WROOM-32D
- ESP32-WROOM-32U

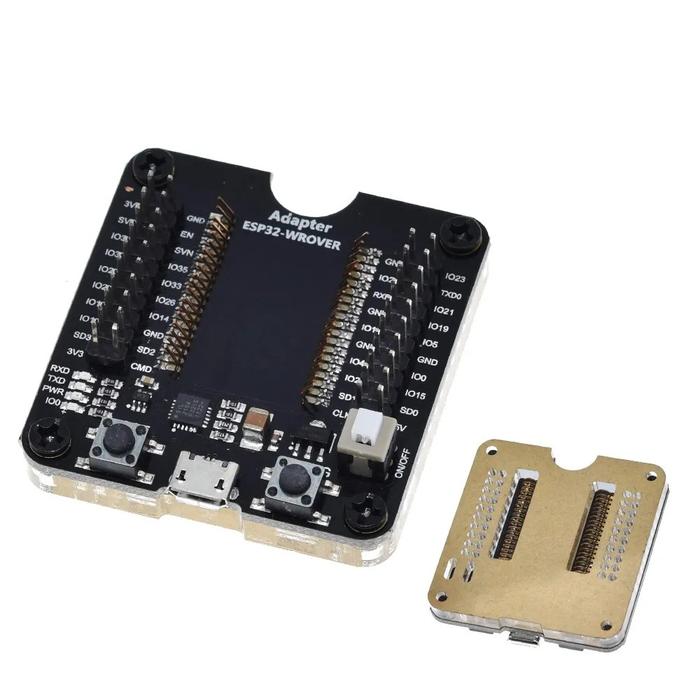

Downloader is for ESP32-WROVER modules. When the programming button is pressed, the blue programming indicator will light and the IOQ pin of the ESP32 module will be pulled low.

Compatibility :
- ESP32-WROVER
- ESP32-WROVER-B
- ESP32-WROVER-I
- ESP32-WROVER-IB

Instructions for use:
1. Download the corresponding CP2102 serial chip driver according to the operating system and install it

2. Download the official FLASH download tool ESPFLASHDOWNLOADTOOL

3. Automatically download the firmware: press the module, insert the USB cable to supply power, cooperate with the FLASH download tool, configure the corresponding burning parameters, click START to download, the firmware burning will start, the downloader will automatically reset and make the module enter the burning mode

Manually download the firmware: Automatically download the firmware: press the module, insert the USB cable to power, open the burning software, configure the corresponding burning parameters, long press the burn button, then short press the reset button, click START to download, you can start the firmware Burn.
