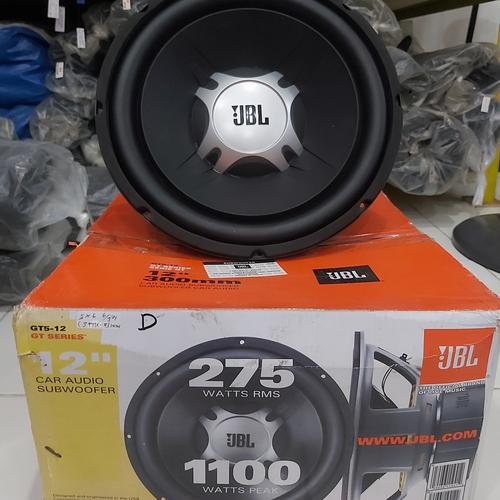

Subwoofer JBL GT5-12 single coil

1. Spesifikasi General -Size12 #34; -SeriesGT5 2. Spesifikasi Audio -Peak Power1100W -Nominal Impedance4 ohms -Power Handling (RMS)275W -Frequency Response27Hz–450Hz -Power Handling (Peak)1100W -Sensitivity(2.83V/1m) 90dB 3. Ukuran -External Diameter (in)12-5/16 -External Diameter (mm)313 -Mounting Depth (in)6-7/16 -Mounting Depth (mm)164 -Mounting Cutout Diameter (mm)286 -Mounting Cutout Diameter (in)11-1/4 4. Woofer Specifications -Mechanical Q(Qms) 6.39 -Magnetic Gap Height(Hag – in/mm) 0.315/8 -Motor Force Factor(Bl – Tm) 15.2 -Voice Coil Height(Hvc – in/mm) 1.43/36.4 -Maximum Excursion(Xmax –in/mm) 0.56/14.2 -Suspension Compliance(Cms – ?m/N) 135 -Free-Air Resonance(Fs – Hz) 29 -Driver Radiating Area(Sd – in2/cm2) 82.15/530 -Voice Inductance@ 1kHz (Levc – mH) 1.26 -Diecast Aluminum FrameNo -Voice Coil DC Resistance(Revc – ohms) 4 -Vented PolepieceYes -SurroundHi-roll rubber -Electrical Q(Qes) 0.64 -Low-Frequency Transducer12 #34; (305mm) Polypropylene cone -Compliance Volume(Vas – ft3 / l) 1.9/54.2 -Voice Coil2 #34; (51mm) diameter -Progressive SpiderYes -Total Q(Qts) 0.58 5. Apa yang ada di dalam kotak? (1) GT5-12 12” Single 4-Ohm Subwoofer (1) Owner #39;s Manual 6. Tanyakan ketersediaan stok terlebih dahulu kepada seller untuk mengecek ketersediaan barang
