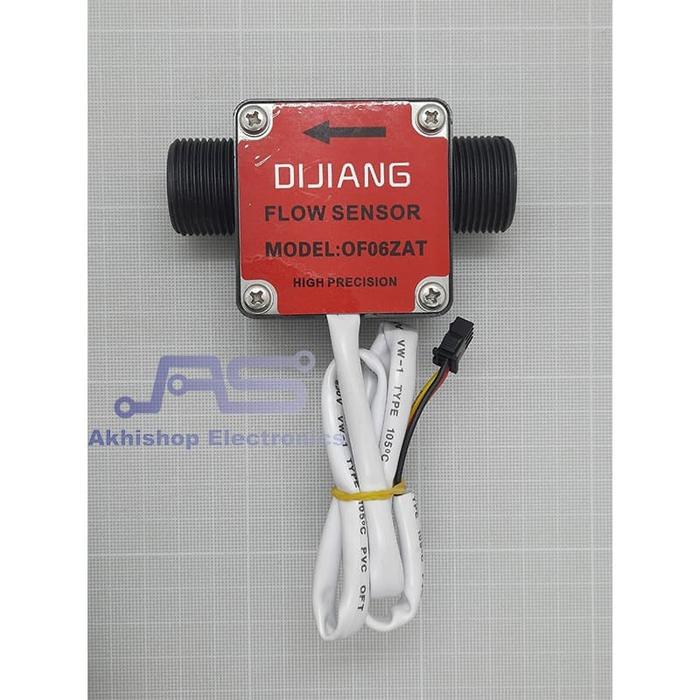

Gear Based Liquid Flow Sensor DIJIANG OF06ZAT 3/4 inchi High Precision
Rp210.000
- Kondisi: Baru
- Min. Pemesanan: 1 Buah
- Etalase: Sensor
SKU : T04001
Application:
Water heater, washing machine, boiler, electromagnetic water heater, water dispenser, water purifier, R.O. machine, U.F. machine, coffee machine, water machine, water machine control, water control machine, beer machine, beauty equipment, shower equipment, electrolytic water machine, energy engineering, heat pump,IC meter, steam equipment, irrigation equipment, water system, campus card self-service sale (sell) water machine, washing machine, automatic washing equipment, water treatment equipment, water dispensing equipment, cooling system, circulation system, intelligent toilet (toilet), bidet, mechanical equipment, heating equipment, Pharmaceutical (agents) equipment etc.
Calculation Formula:F=2.5Q Q=L/Min
Features:
1. PA66 body, PA66 nylon gear.
2. Intubation design of inlet and outlet pipe, easy connection and operation;
3. Imported Hall IC from US Honeywell, stable and reliable;
4. Flow Range: 2-55L/min;
5. working voltage: 5-24V(24V input, 23.5V high level output)
6. rated voltage: DC5V;
7. Output voltage(rated: DC 5V); High level 4.5V and above; low level 0.5V and below
8. Pulse output duty cycle: 50+-10%
9. Insulation resistance: 100M Ohm and above;
10. Tightness: Seal up all the holes, and inflate with 0.8MPa water, after 1 minute, no leakage and deformation;
11. -20-60 centigrade;
12. Max Pressure: 1.2Mpa
13. Electrical Strength: AC500V 50Hz.
14. Wire length: regular 15cm/32cm, other length can be tailor made against request.
15. End connection: SM2.54 Plug
Application:
Water heater, washing machine, boiler, electromagnetic water heater, water dispenser, water purifier, R.O. machine, U.F. machine, coffee machine, water machine, water machine control, water control machine, beer machine, beauty equipment, shower equipment, electrolytic water machine, energy engineering, heat pump,IC meter, steam equipment, irrigation equipment, water system, campus card self-service sale (sell) water machine, washing machine, automatic washing equipment, water treatment equipment, water dispensing equipment, cooling system, circulation system, intelligent toilet (toilet), bidet, mechanical equipment, heating equipment, Pharmaceutical (agents) equipment etc.
Calculation Formula:F=2.5Q Q=L/Min
Features:
1. PA66 body, PA66 nylon gear.
2. Intubation design of inlet and outlet pipe, easy connection and operation;
3. Imported Hall IC from US Honeywell, stable and reliable;
4. Flow Range: 2-55L/min;
5. working voltage: 5-24V(24V input, 23.5V high level output)
6. rated voltage: DC5V;
7. Output voltage(rated: DC 5V); High level 4.5V and above; low level 0.5V and below
8. Pulse output duty cycle: 50+-10%
9. Insulation resistance: 100M Ohm and above;
10. Tightness: Seal up all the holes, and inflate with 0.8MPa water, after 1 minute, no leakage and deformation;
11. -20-60 centigrade;
12. Max Pressure: 1.2Mpa
13. Electrical Strength: AC500V 50Hz.
14. Wire length: regular 15cm/32cm, other length can be tailor made against request.
15. End connection: SM2.54 Plug
