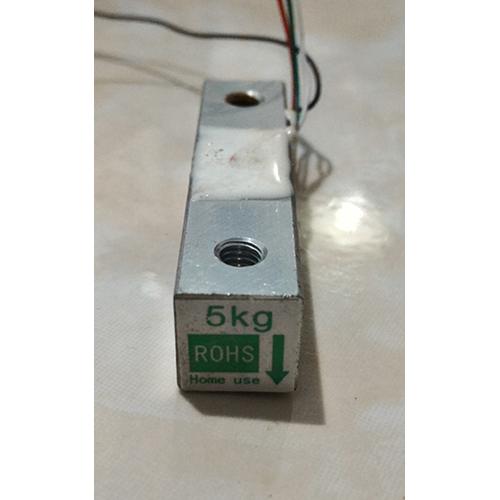

Strain Gauge Pressure Sensor - LoadCell 5kg (Mini)

SKU : A16001 Range (kg) : 5 Comprehensive Error (% FS) : 0.05 Rated output temperature drift (% FS / 10 Derajat C) : 0.15 Sensitivity (mv / v) : 1.0 +- 0.1 Zero output (mV / V) : 0.1 Nonlinear (% FS) : 0.05 Input resistance (Ohm) : 1000 +- 50 Repeatability (% FS) : 0.05 Output Resistance () : 1000 +- 50 Hysteresis (% FS) : 0.05 Insulation Resistance (milliohms) : =2000 (100VDC) Creep (% FS / 3min) : 0.05 Recommended excitation voltage (V) : 3 to 12 Zero drift (% FS / 1min) : 0.05 Operating temperature range (Derajat C) : -10 ~ + 50 Zero temperature drift (% FS / 10 ) : 0.2 Overload (% FS) : 150 Wiring: red + black line input voltage input voltage - Green Line output signal + output signal white line - Output voltage signal the greater the pressure the greater the output voltage signal Full-scale output voltage = excitation voltage x sensitivity 1.0mv / v
