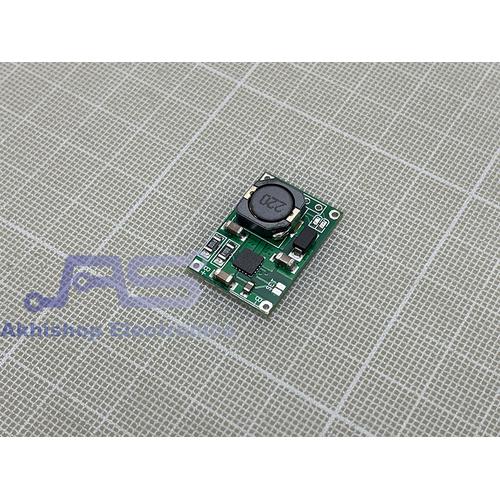

TP5100 Single or Dual Cells Li-ion Battery Charger Module

SKU : A13036 Features Input voltage: 5V~15V DC Charge status: full and unloaded blue lights, charging red Double 8.4v / 4.2v lithium rechargeable single Programmable charge current. 0. 1A-2A Programmable steady precharge current 10% -100% Wide operating voltage, maximum reaches I8V Red and green LED charging status indicator Chip temperature protection, overcurrent protection, under voltage protection Battery temperature protection, reverse battery shutdown, short circuit protection Switching frequency 400Khz, usable inductance 20uH and more PWR_ON Power battery for switching control Size: 25mm x 17mm x 5mm (LxWxH)
