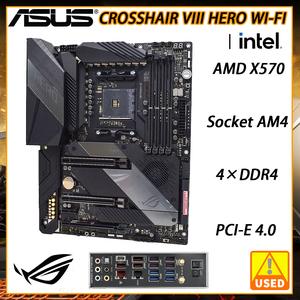

ASUS ROG CROSSHAIR VIII HERO (WI-FI) Motherboard AMD X570 Socket AM4 Motherboard DDR4 64G M.2 PCI-E 4.0 AMD RYZEN CPU 2×M.2 ATX

ASUS ROG CROSSHAIR VIII HERO (WI-FI) Motherboard AMD X570 Socket AM4 Motherboard DDR4 64G M.2 PCI-E 4.0 AMD RYZEN CPU 2M.2 ATX

Deskripsi :

RAID Supported : no
Processor compatibility : AMD Ryzen 5
Usage Scenario : Gaming,Household,Office,Others
Special Function : NONE
Back I/O Ports : 4 x USB 2.0
Onboard LAN : 2x RJ45
Number of M.2 : 2
Storage Interface Type : SATA 3,M.2(SATA)
Number of PCI : 0
Number of PCIe x 16 : 2
PCI - E standards : PCI - E 4.0
Support Memory Type : DDR4
Quality Certification : ce
Memory channel : Double
Form Factor : CeB
Package : No
Maximum Ram Capacity : 128 GB
Form Factor : ATX
Chipset Manufacturer : AMD
With CPU : No
Chipset : AMD X470
Application : Desktop
Socket Type : AM4
Brand Name : Asus
Origin : Mainland China
Certification : CE
Type : Mining Motherboard,AM4 Motherboard,DDR4 64G,AMD RYZEN Cpus


Motherboard chip

Integrated chip sound card/network card

Main chipset AMD X570

Chipset description Using AMD X570 chipset

Audio chip integrated ROG SupremeFX 8-channel audio chip

Network card chip Onboard Intel I211-AT Gigabit network card, WiFi AX200 wireless network card

Processor specifications

CPU type AMD 3rd/2nd generation AMD Ryzen, 2nd/1st generation AMD Ryzen equipped with Radeon Vega Graphics processor

CPU socket Socket AM4

CPU description Support AMD RYZEN processor

Memory specifications

Memory type 4DDR4 DIMM

Maximum memory capacity 128GB

Storage expansion

PCI-E standard PCI-E 4.0

PCI-E slot 2 PCI-E X16 graphics slot

Storage interface 2M.2 interface (PCIe 4.0x4+SATA), 8SATA III interface

I/O interface

USB interface 7USB3.2 Gen2 Type-A, 1USB3.2 Gen2 Type-C, 4USB3.2 Gen1 Type-A, 4USB3.2 Gen1 port, 4USB2.0 port

Power connector One 4-pin, one 8-pin, and one 24-pin power connector

Other interfaces

2RJ45 network interface

Plate type

Motherboard board type ATX board type

.
