modul BMS 3S 20A Li-Ion Lithium battery 18650 charger protection board

Terima kasih sudah berkunjung di lapak kami
Budayakan membaca sebelum membeli
( PENGIRIMAN DI HARI MINGGU dan TANGGAL MERAH LIBUR )

Features:
Module name: 3S 12.6V Li-ion Lithium Battery 18650 Charger Protection PCB Board
Suitable range: For nominal voltage 3.6V 3.7V lithium battery(Including 18650,26650, lithium polymer batteries)
Product Size: 64mmx20mmx3.4mm
Material:Metal
Charging voltage: 12.6V
Maximum output current: 20A
Maximum output power / charging power: 252W

Precautions:

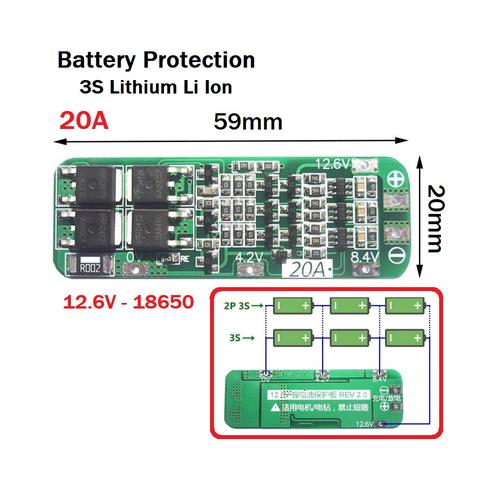

1.Strictly according to the diagram wiring: 0V/4.2V/8.4V/12.6V,Otherwise it will cause damage to the chip.
2.After connection,it need to first charge activation, then will have the output.
