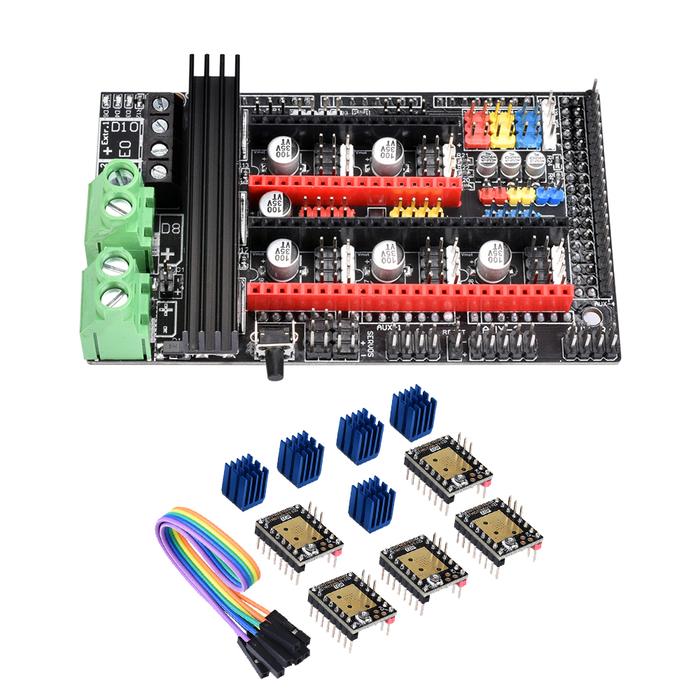

AN BIGTREETECH Ramps1.6 Plus Upgraded PCB Board Base on Ramps

AN BIGTREETECH Ramps1.6 Plus Upgraded PCB Board Base on Ramps Semua Produk Di Toko Kami Pre-Order 6-15 Hari Tergantung Stok dan Posisi Gudang. Harap Chat Terlebih Dahulu Sebelum Order Atau Anda Setuju Dengan Waktu Pre-Order Yang Kami Tetapkan Secara Default 15-Hari. Advantage:1. The PCB has a built-in selection terminal for driving the SPI working mode, and is compatible with STEP/DIR and SPI modes.2. The parts of power and heat bed using the 30A high current terminal ,which can largely avoid the burning terminal situations.3. It is more clear to connect the wire after update a new top overlay and bottom overlay .4.Adding the reset expansion interface, It is convenient for users to extend the reset button.5. X, Y, Z, E0, E1 all use parallel dual motor interface, so that the board can use for more type machine .6, Using a combination of color pin and row connector , effectively distinguishing each function interface, beautiful and practical.Introduction: 1.BIGTREETECH Ramps 1.6 plus is mainly a new adapter ramps board for the upgrade of the old Ramps 1.6 driver using the SPI working mode wiring complex problem. 2.The BIGTREETECH Ramps 1.6 plus uses the SPI mode of operation, which can be achieved simply by plugging and unplugging the jumper cap. AN-1647649
