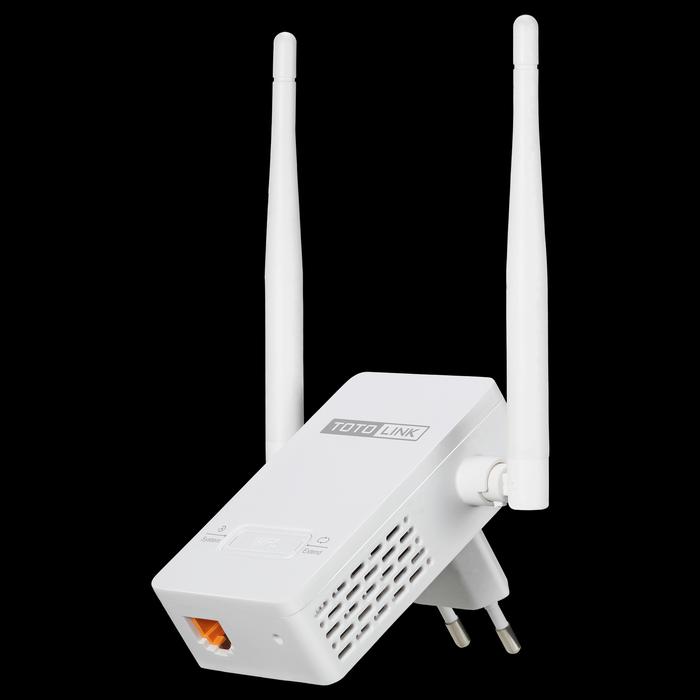

TOTOLINK EX200 - Range Extender / Repeater 300Mbps Wireless

TOTOLINK EX200 - Range Extender / Repeater 300Mbps Wireless


Hardware

Interface

- 1 *10/100BaseTX (Auto MDI/MDIX) RJ45 port

Power Supply

- 5V /1A internal power

Antenna

- 2 *4dBi External Antennas

Button

- 1* WPS Button, 1*RST Button

LED  Indicators- 1 *SYS, 1* Wi-Fi

Dimensions (L x W x H)

- 2.0 x 3.4 x 1.2 in. (52 x 85.7 x 30.9mm)


Wireless

Standards

- IEEE 802.11n, IEEE 802.11g, IEEE 802.11b

RF Frequency

- 2.4~2.4835GHz

Data Rate

- Up to 300Mbps

EIRP

- < 20dBm

Wireless Security

- 64/128-bit WEP, WPA/WPA2, WPA-PSK/WPA2-PSK (TKIP/AES)

Reception Sensitivity

- 11b  11M: - 81 dBm

- 11g  54M: - 68 dBm

- 11n  HT20:  - 65 dBm

          HT40:  - 62 dBm


Others

Package Contents


- EX200 Wireless Extender *1

- Quick Installation Guide *1

Environment

- Operating Temperature: 0℃~50 ℃ (32 ℉~122℉)

- Storage Temperature: -40℃~70 ℃ (-40 ℉~158℉)

- Operating Humidity: 5%~95% non-condensing

- Storage Humidity: 5%~95% non-condensing
