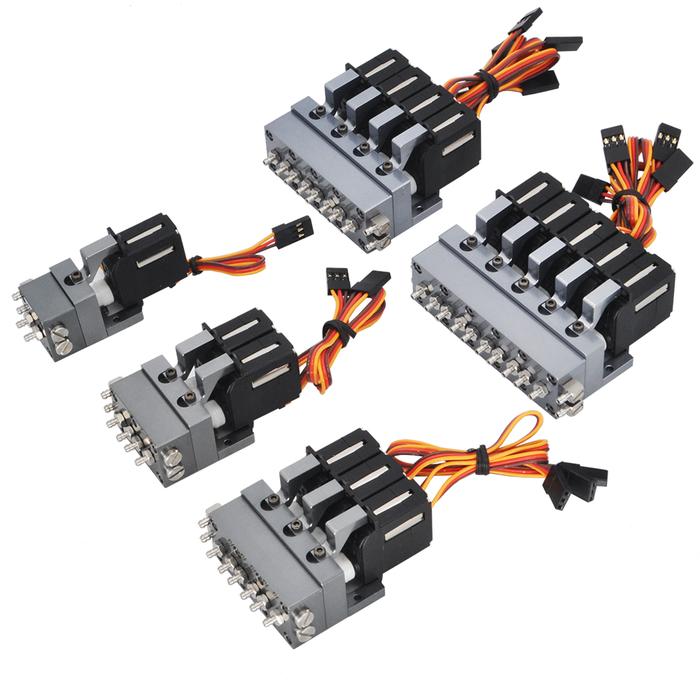

6MPa Mini Hydraulic 1/2/3/4/5 CH Valve For Upgrade Double E E010 EC160E Huina Kabolite k336gc 1580 1593 1/14 RC Excavator Parts
Rp4.667.600
- Kondisi: Baru
- Waktu Preorder: 28 Hari
- Min. Pemesanan: 1 Buah
- Etalase: Semua Etalase
6MPa Mini Hydraulic 1/2/3/4/5 CH Valve For Upgrade Double E E010 EC160E Huina Kabolite k336gc 1580 1593 1/14 RC Excavator Parts
Deskripsi :
Quantity : 1 pcs
Size : As below shown
Technical parameters : Value 2
Model Number : mini valve
For Vehicle Type : Cars
Tool Supplies : Assembled class
Four-wheel Drive Attributes : Assemblage
Remote Control Peripherals/Devices : Servos
Upgrade Parts/Accessories : Adapter
RC Parts & Accs : Connectors/Wiring
Material : Metal
Brand Name : MOTIVE-RC
Origin : Mainland China
Recommend Age : 14+y
Use : Vehicles & Remote Control Toys
6MPa Mini Hydraulic 1/2/3/4/5 CH Valve For Upgrade Double E E010 EC160E Huina Kabolite k336gc 1580 1593 1/14 RC Excavator Parts
*We focus on R&D and production of various RC excavators, bulldozers and other engineering vehicle models to upgrade hydraulic accessories, and have rich experience.
*Source factory, support wholesale and drop shipping
Features:
The directional valve use the piston-type pressure-holding structure, which has good stability, small size and good continuity of action.
All grease nipples and plugs are made of stainless steel, with high hardness and wear resistance, with imported sealing rings.
With medium-position overflow function, not let the oil pump stall, protect the motor, save electricity, not easy to burst the oil pipe.
Material: 7075 H59
Process: CNC
Use requirements: Rated 1.5-6MPA
Connector: connect the OD 3mm, ID 2mm hose
Structure:Medium-position overflow function, when the oil pump is turned on and any oil cylinder is not operating, the high-pressure oil flows directly back to the oil tank through the middle oil return passage in the valve body. The system pressure is minimal.
Dimensions:
(without nozzle connector)
1CH: 16mm*32.15mm*54.8mm
2CH: 28.5mm*32.15mm*54.8mm
3CH: 41mm*32.15mm*54.8mm
4CH: 53.5mm*32.15mm*54.8mm
5CH: 66mm*32.15mm*54.8mm
.
Deskripsi :
Quantity : 1 pcs
Size : As below shown
Technical parameters : Value 2
Model Number : mini valve
For Vehicle Type : Cars
Tool Supplies : Assembled class
Four-wheel Drive Attributes : Assemblage
Remote Control Peripherals/Devices : Servos
Upgrade Parts/Accessories : Adapter
RC Parts & Accs : Connectors/Wiring
Material : Metal
Brand Name : MOTIVE-RC
Origin : Mainland China
Recommend Age : 14+y
Use : Vehicles & Remote Control Toys
6MPa Mini Hydraulic 1/2/3/4/5 CH Valve For Upgrade Double E E010 EC160E Huina Kabolite k336gc 1580 1593 1/14 RC Excavator Parts
*We focus on R&D and production of various RC excavators, bulldozers and other engineering vehicle models to upgrade hydraulic accessories, and have rich experience.
*Source factory, support wholesale and drop shipping
Features:
The directional valve use the piston-type pressure-holding structure, which has good stability, small size and good continuity of action.
All grease nipples and plugs are made of stainless steel, with high hardness and wear resistance, with imported sealing rings.
With medium-position overflow function, not let the oil pump stall, protect the motor, save electricity, not easy to burst the oil pipe.
Material: 7075 H59
Process: CNC
Use requirements: Rated 1.5-6MPA
Connector: connect the OD 3mm, ID 2mm hose
Structure:Medium-position overflow function, when the oil pump is turned on and any oil cylinder is not operating, the high-pressure oil flows directly back to the oil tank through the middle oil return passage in the valve body. The system pressure is minimal.
Dimensions:
(without nozzle connector)
1CH: 16mm*32.15mm*54.8mm
2CH: 28.5mm*32.15mm*54.8mm
3CH: 41mm*32.15mm*54.8mm
4CH: 53.5mm*32.15mm*54.8mm
5CH: 66mm*32.15mm*54.8mm
.
