POMPA HORIZONTAL MULTISTAGE CENTRIFUGAL
Rp2.499.900
- Kondisi: Baru
- Min. Pemesanan: 1 Buah
- Etalase: Semua Etalase
Pompa Air Centrifugal stainless cocok untuk mentransfer air tanpa partikel abrasif atau cairan lain yang sifatnya mirip dengan air. Banyak digunakan dalam pasokan air perkebunan,pasokan air dan drainase ,industri pembibitan, pasokan air menara air, tekanan pipa, berbagai peralatan wajar, dll.

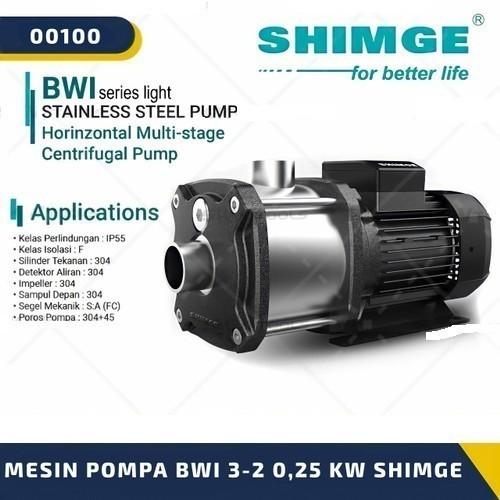

Tipe SHIMGE BWI 3-5
BWI series light stainless steel pump is a multi-purpose non-self-priming horizontal
multi-stage centrifugal pump, and this series of products is equipped with extended
shaft 2-stage air-cooled motor; with axial suction and radial discharge, it is more compact,
smaller in volume, more convenient in maintenance, and stronger in pressure withstanding
capability compared with the previous generation, which can meet the needs of installation
in small spaces
Pressure cylinder: 304
Flow deflector: 304
Impeller: 304
Front cover: 304
Mechanical seal: S:A (FC)
Pump shaft: 304+45
Pressure plate: YL102
Tie rod: Q235A
Base: PP
Insulation Class F
Protection Class IP55
Medium temperatur 0°c~68°c
Ambient temperatur -15°c~40°c
Maximum working pressure 1.0MPa
Spesifikasi Produk
Shimge Model BWI 3-5
Power 0.55kw 0.75hp 220v 1phase
Max Flow 4 m³/jam - 67 liter/min
Max Dorong 44 m
Head range 24 m - 44 m
Pipa ukuran 1 inc x 1 inc
Mesin Pompa NON AUTO
Tipe SHIMGE BWI 3-5
BWI series light stainless steel pump is a multi-purpose non-self-priming horizontal
multi-stage centrifugal pump, and this series of products is equipped with extended
shaft 2-stage air-cooled motor; with axial suction and radial discharge, it is more compact,
smaller in volume, more convenient in maintenance, and stronger in pressure withstanding
capability compared with the previous generation, which can meet the needs of installation
in small spaces
Pressure cylinder: 304
Flow deflector: 304
Impeller: 304
Front cover: 304
Mechanical seal: S:A (FC)
Pump shaft: 304+45
Pressure plate: YL102
Tie rod: Q235A
Base: PP
Insulation Class F
Protection Class IP55
Medium temperatur 0°c~68°c
Ambient temperatur -15°c~40°c
Maximum working pressure 1.0MPa
Spesifikasi Produk
Shimge Model BWI 3-5
Power 0.55kw 0.75hp 220v 1phase
Max Flow 4 m³/jam - 67 liter/min
Max Dorong 44 m
Head range 24 m - 44 m
Pipa ukuran 1 inc x 1 inc
Mesin Pompa NON AUTO
