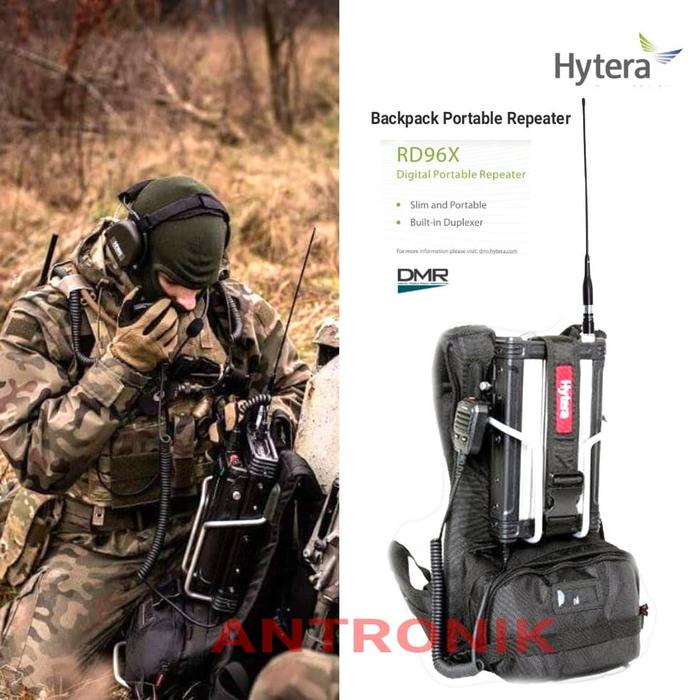

Repeater HT Portable Hytera RD96X Ripiter digital portable backpack
Rp75.550.000
- Kondisi: Baru
- Min. Pemesanan: 1 Buah
- Etalase: ALL REPEATER EQUIPMENT
Specifications Digital Portable Repeater Hytera RD968
General
Frequency Range
VHF 136-174MHz
UHF1 400-470MHz
UHF3 350-400MHz
Channel Capacity :16
Channel Spacing:12.5kHz/20kHz/25kHz
Operating Voltage:DC: 13.6 V15%
Battery: 14.8V
Current Drain Standby Transmit Frequency Stability 0.5ppm
Battery10Ah(Li-lon)Battery Life(50-50 Duty Cycle, High TX Power)8h
Antenna Impedance 50
Dimensions (HWD)
301x184x51mm (with protective shell)
291x172x41mm (without protective shell)
Weight
Transmitter
RF Power Output:1-10W (adjustable)
FM Modulation:11K0F3E@12.5kHz,14K0F3E@20kHz16K0F3E@25kHz
4FSK Digital Modulation
12.5kHz Data Only: 7K60FXD
12.5kHz Data & Voice: 7K60FXW
Conducted/Radiated Emission
-36dBm
-30dBm >1GHz
Modulation Limiting
2.5 kHz @ 12.5 kHz
4.0 kHz @ 20 kHz
5.0 kHz @ 25 kHz
FM Hum & Noise
40dB @ 12.5 kHz
43dB @ 20 kHz
45dB @ 25 kHz
Adjacent Channel Power
60dB@12.5kHz
70dB@20 /25kHz
Audio Response
+1 ~ -3dB
Audio Distortion
3%
Digital Vocoder Type
AMBE++ or SELP
Digital Protocol
ETSI-TS102 361-1,2&3
Receiver
Sensitivity
Analog
0.3V (12dB SINAD)
0.22V (Typical) (12dB SINAD)
0.4V (20dB SINAD)
Digital
0.3uV/BER5%
Adjacent Channel Selectivity
TIA-603
ETSI
65dB @ 12.5 kHz ;75dB @ 20/25 kHz
60dB @ 12.5 kHz ;70dB @ 20/25 kHz
Intermodulation
TIA-603
ETSI
75dB @ 12.5/20/25 kHz
70dB @ 12.5/20/25 kHz
Spurious Response Rejection TIA-603
ETSI
75dB @ 12.5/20/25 kHz
70dB @ 12.5/20/25 kHz
Blocking
TIA-603
ETSI
90dB
84dB
Hum and Noise
40dB @ 12.5KHz
43dB @ 20KHz
45dB @ 25KHz
Rated Audio Distortion
3%
Audio Response
+1 ~ -3dB
Conducted Spurious Emission
Environmental Specifications
Operating Temperature
-30?~+60?
Storage Temperature
-40?~+85?
ESDIEC 61000-4-2 (level 4)
8kV (contact) 15kV (air)American Military StandardMIL-STD-810 C/D/E/F/GDust & Water IntrusionIP67 StandardHumidityPer MIL-STD-810 C/D/E/F/G StandardShock & VibrationPer MIL-STD-810 C/D/E/F/G StandardGPSTTFF (Time To First Fix) Cold Star
