PANEL LED MODUL P10 RGB SMD OUTDOOR 1/8 S 2727 ,1/4 S 2727,1/4 S 3535 - 1/8 SCAN 2727, hanya panel
Rp99.000
Pilih type panel: 1/8 SCAN 2727
Pilih optional: hanya panel
Stok varian ini habis. Simpan di Wishlist untuk diingatkan ketika barang kembali tersedia.

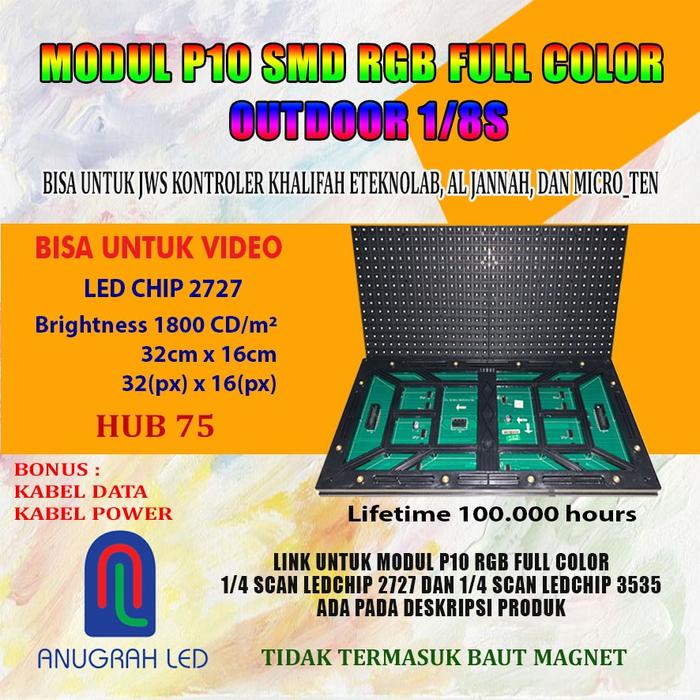

1==Panel P10 RGB 1/8 Scan 2727 outdoor
Item Parameter
LED lamp SMD2727,1R1G1B(3IN1)
Pixel pitch 10mm
Cabinet resolution Based on cabinet size
Module resolution (W)32 * (H)16 pixels
Cabinet size Customized based on module size
Module size (W)320mm * (H)160mm
Density 10,000 pixels/m2
Scan mode 1/8 scanning mode
Refresh rate 960HZ
Drive IC 5125D
Brightness 1800CD/ m2
Color temperature 9000K±500（can be customized）
Viewing angle(H/V) 120°/120° Besting viewing distance ≥10m
Input voltage AC110-220V±10%
Working voltage DC5V±10%
Max. Power consumption 19W/PCS
Lifespan 100,000 hours
Working temperature -20℃ ～ 60℃
TEGANGAN WAJIB 5 VOLT. +/- TIDAK BOLEH TERBALIK AKAN MENYEBABKAN TERBAKAR (TIDAK DIGARANSI)
2==Deskripsi Panel Led P10 RGB 1/4 Scan 2727 Outdoor
UNTUK TYPE PANEL MODUL INI,SCAN TYPE MENGGUNAKAN
(P10_32x16_4S-CAN_BGR)
Bila di aplikasi untuk type scan tersebut belum ada,
silahkan update untuk scan typenya.
caranya: masuk ke menu setting di aplikasi,
lalu klik > Monocrome Screen Parameters,lalu klik Check For Update
BISA VIDEO
MENGGUNAKAN MAGNET 4 MM
Name P10 LED M display outdoor
Application Outdoor
Plate Size 320mm160mm
Resolution 3216
Pixels pitch 10mm
Light color 1R 1G 1B
LED lamp SMD 2727
Brightness '1800 CD/m2
Drive mode 1/4 Dynamic scan,constant current
Pixel density 10000dots/sqm
Best viewing distance '10m
Maximum Current 6.6A
Input Voltage(DC) 4.8-5.5V
3==Panel Led P10 RGB 1/4 Scan 3535 Outdoor
P10 LED display outdoor
Application Outdoor
Plate Size 320mm*160mm
Resolution 32*16
Pixels pitch 10mm
Light color 1R 1G 1B
LED lamp SMD 3535
Brightness '3500cd/sqm
Drive mode 1/4 Dynamic scan,constant current
Pixel density 10000dots/sqm
Best viewing distance '10m
Maximum Current 6.6A
Input Voltage(DC) 4.8-5.5V
TEGANGAN WAJIB DC 5V,,,TIDAK BOLEH TERBALIK YG MENYEBABKAN KOMPONEN TERBAKAR (TIDAK GARANSI)
Item Parameter
LED lamp SMD2727,1R1G1B(3IN1)
Pixel pitch 10mm
Cabinet resolution Based on cabinet size
Module resolution (W)32 * (H)16 pixels
Cabinet size Customized based on module size
Module size (W)320mm * (H)160mm
Density 10,000 pixels/m2
Scan mode 1/8 scanning mode
Refresh rate 960HZ
Drive IC 5125D
Brightness 1800CD/ m2
Color temperature 9000K±500（can be customized）
Viewing angle(H/V) 120°/120° Besting viewing distance ≥10m
Input voltage AC110-220V±10%
Working voltage DC5V±10%
Max. Power consumption 19W/PCS
Lifespan 100,000 hours
Working temperature -20℃ ～ 60℃
TEGANGAN WAJIB 5 VOLT. +/- TIDAK BOLEH TERBALIK AKAN MENYEBABKAN TERBAKAR (TIDAK DIGARANSI)
2==Deskripsi Panel Led P10 RGB 1/4 Scan 2727 Outdoor
UNTUK TYPE PANEL MODUL INI,SCAN TYPE MENGGUNAKAN
(P10_32x16_4S-CAN_BGR)
Bila di aplikasi untuk type scan tersebut belum ada,
silahkan update untuk scan typenya.
caranya: masuk ke menu setting di aplikasi,
lalu klik > Monocrome Screen Parameters,lalu klik Check For Update
BISA VIDEO
MENGGUNAKAN MAGNET 4 MM
Name P10 LED M display outdoor
Application Outdoor
Plate Size 320mm160mm
Resolution 3216
Pixels pitch 10mm
Light color 1R 1G 1B
LED lamp SMD 2727
Brightness '1800 CD/m2
Drive mode 1/4 Dynamic scan,constant current
Pixel density 10000dots/sqm
Best viewing distance '10m
Maximum Current 6.6A
Input Voltage(DC) 4.8-5.5V
3==Panel Led P10 RGB 1/4 Scan 3535 Outdoor
P10 LED display outdoor
Application Outdoor
Plate Size 320mm*160mm
Resolution 32*16
Pixels pitch 10mm
Light color 1R 1G 1B
LED lamp SMD 3535
Brightness '3500cd/sqm
Drive mode 1/4 Dynamic scan,constant current
Pixel density 10000dots/sqm
Best viewing distance '10m
Maximum Current 6.6A
Input Voltage(DC) 4.8-5.5V
TEGANGAN WAJIB DC 5V,,,TIDAK BOLEH TERBALIK YG MENYEBABKAN KOMPONEN TERBAKAR (TIDAK GARANSI)
