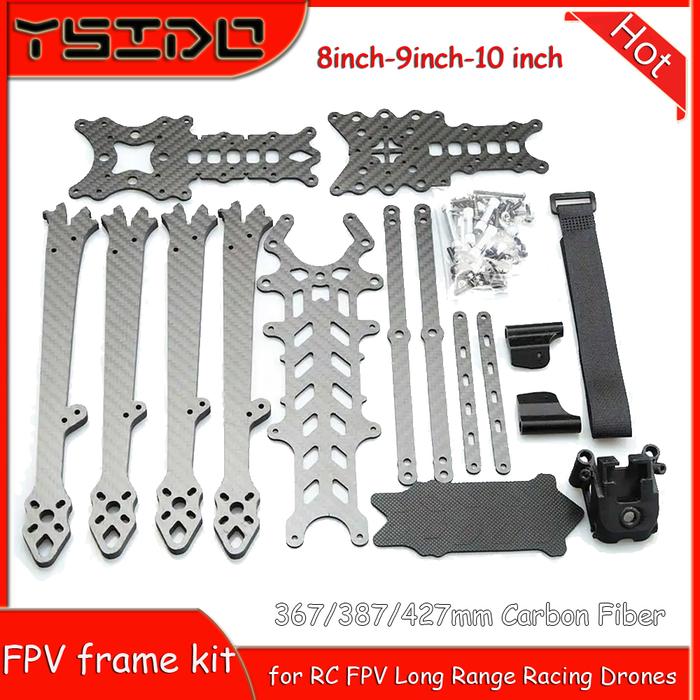

DF-V2 8/9/10 inch RC FPV Drone Carbon Fiber Frame Set 367/387/427mm for RC FPV Freestyle Long Range Racing Drone RC Model Parts

Poisonous Bees Poisonous Bees DF-V2 RC FPV Drone Frame KIT 8/9/10 inch 367 387 427mm Carbon Fiber For RC FPV Freestyle Long Range Racing Drone Quadcopter


Model: DF- V2 8inch
Wheelbase: 367mm
Weight: 282g
Thickness of bottom plate: 2mm
Thickness of top plate: 2mm
Thickness of camera arm: 6mm
Camera side panel thickness: 2mm
Camera mounting hole spacing: 19 mm
Mapping mounting hole spacing 20*20mm & 30.5*30.5mm
Flight Control Mounting Pitch: 30.5*30.5mm
Inner space height: 35mm
Motor mounting hole pitch: 16*16mm & 19*19mm

Recommended Configuration: (not included)
motor: 2810/2812/3110/3112
ESC: 45A-60A
propeller: 8 inches,
Camera: 19 * 19mm
flight control: F4/F7/F405/F722/KK
VTX:5.8G/1.2G/4.9G-1.2W-3W
Battery: 6S-3000MAH-8000MAH

Model: DF- V2 9inch
Wheelbase: 387mm
Weight:292g
Thickness of bottom plate: 2mm
Thickness of top plate: 2mm
Thickness of camera arm: 6mm
Camera side panel thickness: 2mm
Camera mounting hole spacing: 19 mm
Mapping mounting hole spacing 20*20mm & 30.5*30.5mm
Flight Control Mounting Pitch: 30.5*30.5mm
Inner space height: 35mm
Motor mounting hole pitch: 16*16mm & 19*19mm

Recommended Configuration: (not included)
motor: 2812/3110/3115/3210/3214
ESC: 50A-65A
propeller: 9 inches,
Camera: 19 * 19mm
flight control: F4/F7/F405/F722/KK
VTX:5.8G/1.2G/4.9G-1.2W-3W
Battery: 6S-4000MAH-8000MAH

Model: DF- V2 10inch
Wheelbase: 427mm
Weight: 310g
Thickness of bottom plate: 2mm
Thickness of top plate: 2mm
Thickness of camera arm: 7mm
Camera side panel thickness: 2mm
Camera mounting hole spacing: 19 mm
Mapping mounting hole spacing 20*20mm & 30.5*30.5mm
Flight Control Mounting Pitch: 30.5*30.5mm
Inner space height: 35mm
Motor mounting hole pitch: 16*16mm & 19*19mm

Recommended Configuration: (not included)
motor: 3110/3115/3210/3214
ESC: 60A-80A
propeller: 10 inches,
Camera: 19 * 19mm
flight control: F4/F7/F405/F722/KK
VTX:5.8G/1.2G/4.9G-1.2W-5W
Battery: 6S-6000MAH-12000MAH

Package included:
1*DF-V2 FPV Drone Frame KIT 8/9/10inch 367/387/427mm Carbon
