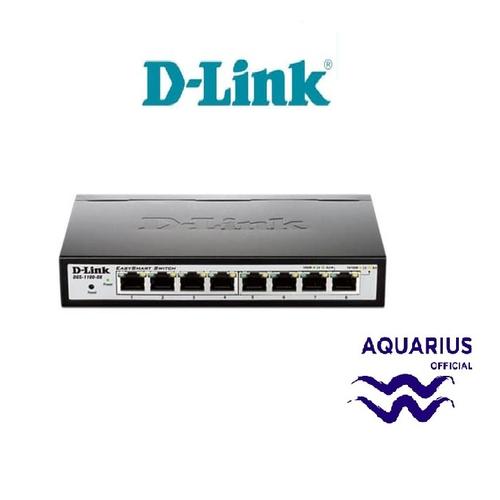

D-LINK DGS-1100-08 8-Port Layer 2 Lite Smart Managed Gigabit Switch

• 8 Port 10/100/1000 Base-T compliant with IEEE 802.3az energy efficient
• Support IEEE 802.1Q VLAN traffic segregation
• Auto Surveillance VLAN for easy integration with IP-based surveillance systems
• Loopback detection (LBD) and broadcast storm control to avoid network downtime
• Quality of Service (QOS) and bandwidth control to ensure smooth operation
• Cable diagnostics function to help troubleshooting wiring problem
• Support Web-based GUI, Smart Console , Network Assistance Utility

Hardware Version
Rev A (DGS-1100-05, DGS-1100-08, DGS-1100-08P)
Rev B (DGS-1100-10MP, DGS-1100-16, DGS-1100-24, DGS-1100-24P, DGS-1100-26MP)
Number of Ports 5 x 10/100/1000 (DGS-1100-05)
8 x 10/100/1000 (DGS-1100-08 & DGS-1100-08P)
8 x 10/100/1000 and 2 x Gigabit SFP (DGS-1100-10MP)
16 x 10/100/1000 (DGS-1100-16)
24 x 10/100/1000 (DGS-1100-24 & DGS-1100-24P)
24 x 10/100/1000 and 2 x Gigabit RJ45/SFP Combo (DGS-1100-26MP)
Port Standard & Functions
IEEE 802.3, 802.3u, 802.3ab compliant
IEEE 802.3x Flow Control
IEEE 802.3az EEE compliant
802.3af (DGS-1100-08P/-10MP/-24P/-26MP)
802.3at (DGS-1100-10MP/-24P/-26MP)
Half/Full-duplex operation at 10/100Mbps
Full-duplex operation at 1000Mbps
Auto-Negotiation for each port
Auto MDI/MDIX
Switching Capacity 10Gbps (DGS-1100-05)
16Gbps (DGS-1100-08 & DGS-1100-08P)
20Gbps (DGS-1100-10MP)
32Gbps (DGS-1100-16)
48Gbps (DGS-1100-24 & DGS-1100-24P)
52Gbps (DGS-1100-26MP)
Max. Forwarding Rate 7.44 Mpps (DGS-1100-05)
11.9 Mpps (DGS-1100-08 & DGS-1100-08P)
14.88 Mpps (DGS-1100-10MP)
23.81 Mpps (DGS-1100-16)~35.71 Mpps (DGS-1100-24 & DGS-1100-24P)
38.69 (DGS-1100-26MP)
MAC Address Table Size 8K Entries (DGS-1100-05/-08/-08P/-16/-24/-24P)
16K Entries (DGS-1100-10MP/-26MP)
Packet Buffer 1Mbits (DGS-1100-05)
