Deskripsi Produk

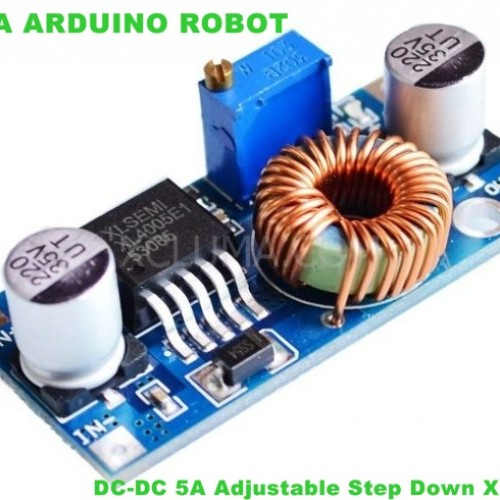

DC-DC 5A Adjustable Step Down XL4005 dapat menurunkan voltase input ke voltase output yang lebih rendah. Voltase output dapat diatur menggunakan potensiometer biru pada modul.
Detail Produk: ++ Module property: Non-isolated step down module(BUCK). ++ Input voltage:4V-38V ++ Output voltage:1.25V-36V(adjustable) ++ Output current:0A-5A,for safe working current, please under 4.5A. ++ Output power: hingga 75W, lebih dari 50W tambahkan heat sink. ++ Working temperature:-40degree~+85degree ++ Working frequency:180KHz ++ Transfer efficiency:96%(max) ++ Load regulation rate: S (I) 0.8% ++ Voltage regulation rate: S (U) 0.8% ++ Power indicator: yes ++ Short circuit protection: (current limiting 8A) ++ Over temperature protection: Yes (automatic shutdown output ultra temperature) ++ Short circuit protection: Yes ++ Input reverse connect protection: NO ++ Output reverse connect protection: no ++ PCB size:54x24x12mm
Isi Paket: 1x DC-DC 5A Adjustable Step Down XL4005
