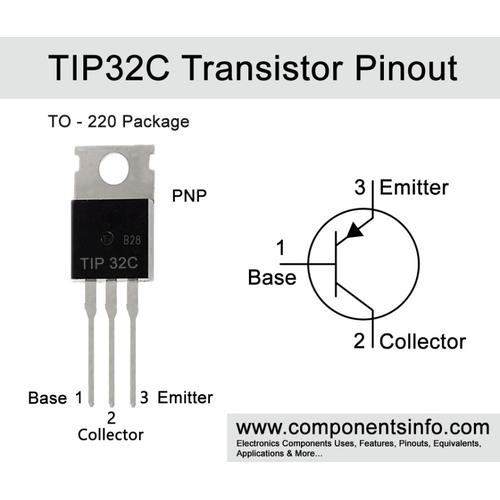

Transistor TIP31 TIP32 TIP31C TIP32C NPN PNP 3A Driver Final Amplifier - TIP32C, GRADE A
Rp5.700
Pilih ukuran: TIP32C
Pilih daya: GRADE A
Transistor Driver Final Amplifier OCL
PIlih Type di Varian :
TIP31C (NPN)
TIP32C (PNP)
Pilihan Kualitas :
Grade A (ORI ST)
Grade B (ORI-II/KW)
Features / Technical Specifications:
Package Type: TO-220
Max Collector Current(IC): 3A
Max Collector-Emitter Voltage (VCE): 100V
Max Collector-Base Voltage (VCB): 100V
Max Emitter-Base Voltage (VEBO): 5V
Max Collector Dissipation (Pc): 40 Watt
Max Transition Frequency (fT): 3 MHz
Minimum & Maximum DC Current Gain (hFE): 10 – 50
Max Storage & Operating temperature Should Be: -65 to +150 Centigrade
*HARGA TERTERA UNTUK 1PCS
PIlih Type di Varian :
TIP31C (NPN)
TIP32C (PNP)
Pilihan Kualitas :
Grade A (ORI ST)
Grade B (ORI-II/KW)
Features / Technical Specifications:
Package Type: TO-220
Max Collector Current(IC): 3A
Max Collector-Emitter Voltage (VCE): 100V
Max Collector-Base Voltage (VCB): 100V
Max Emitter-Base Voltage (VEBO): 5V
Max Collector Dissipation (Pc): 40 Watt
Max Transition Frequency (fT): 3 MHz
Minimum & Maximum DC Current Gain (hFE): 10 – 50
Max Storage & Operating temperature Should Be: -65 to +150 Centigrade
*HARGA TERTERA UNTUK 1PCS
