MODUL WIFI ESP8266-01 ESP01 ( ARDUINO )

Harga Tertera :
1pcs MODUL WIFI ESP8266-01 ESP01.

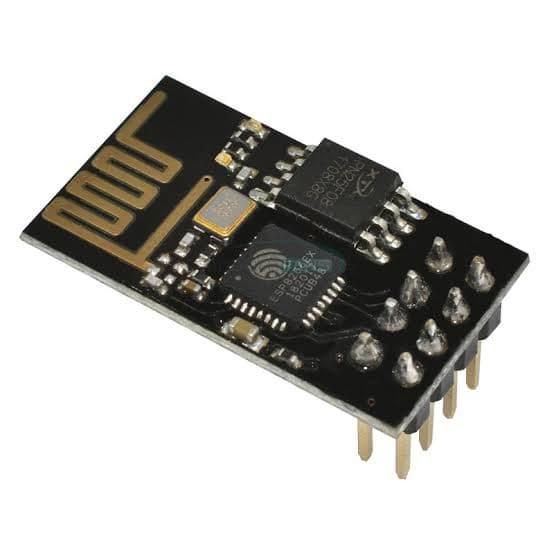

Fisik Barang Sesuai Gambar.
Sudah di cek fisik dan fungsi komponen.
Berguna untuk proyek robotika dan elektronika.

Tutorial :
IoT Blynk : http://www.instructables.com/id/Blynk-and-Module-ESP8266-With-Arduino-UNO/

Spesifikasi:
- 802.11 b/g/n protocol
- Wi-Fi Direct (P2P), soft-AP
- Integrated TCP/IP protocol stack
- Integrated TR switch, balun, LNA, power amplifier and matching network
- Integrated PLL, regulators, and power management units
- +19.5dBm output power in 802.11b mode
- Integrated temperature sensor
- Power down leakage current of < 10uA
- Integrated low power 32-bit CPU could be used as application processor
- SDIO 2.0, SPI, UART
- STBC, 11 MIMO, 21 MIMO
- A-MPDU & A-MSDU aggregation & 0.4s guard interval
- Wake up and transmit packets in < 2ms
- Standby power consumption of < 1.0mW (DTIM3)
- Ukuran : 13.2 x 21.1mm

Jika ada pertanyaan atau kendala seputar produk jangan segan bertanya pada kami
Support WhatsApp : 082111545939
