Function Generator XR2206 Kit Sine Triangle Square Signal + Casing - DIY KIT
Rp73.500
Pilih ukuran: DIY KIT
UNTUK PENGIRIMAN TERGANTUNG MASING2 KURIR YANG DIPILIH.. SILAKAN BACA KETENTUAN MASING2 KURIRNYA
HARI MINGGU/AHAD/LIBUR NASIONAL TIDAK ADA PENGIRIMAN, KECUALI DALAM KONDISI TERTENTU.. TERIMA KASIH
Modul atau DIY KIT Function Generator XR2206 Kit Sine Triangle Square Wave Signal Output 1HZ-1MHZ . Terdapat 2 VARIAN yang DIY KIT (Belum Dirakit) dan ASSEMBLED (Sudah Dirakit)
ASSEMBLED:
- Modul sudah dirakit dalam casing akrilik Transparant
- Short Manual & Skema
DIY KIT:
- Belum Dirakit

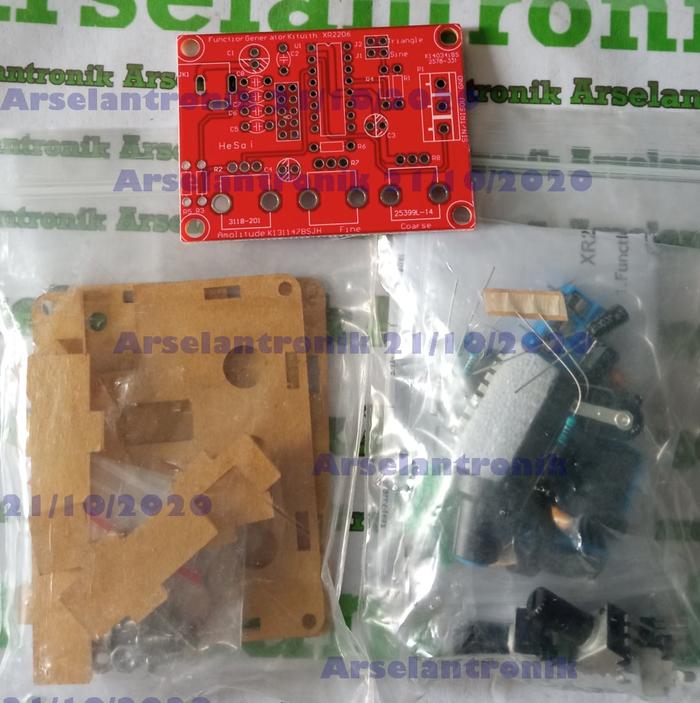

- IC XR2206 + Socket 16Pin + Komponen-komponen pendukung
- PCB modul Function Generator
- Skematik rangkaian dan tata letak serta short manual
- Casing plastik + baut/sekrup 4 buah
Voltage Supply: 9-12V DC Input (PASTIKAN MENGGUNAKAN POWER SUPPLY STABIL ATAU BATERAI 9V)
Waveforms: Square, Sine & Triangle
Impedance: 600 Ohm + 10%
Frequency: 1Hz - 1MHz (Max. Freq for Square & Triangle is about 80KHz)
SINE WAVE
Amplitude: 0 - 3V at 9V DC input
Distortion: Less than 1% (at 1kHz)
Flatness: +0.05dB 1Hz - 100kHz
SQUARE WAVE
Amplitude: 8V (no load) at 9V DC input
Rise Time: Less than 50ns (at 1kHz)
Fall Time: Less than 30ns (at 1kHz)
Symmetry: Less than 5% (at 1kHz)
TRIANGLE WAVE
Amplitude: 0 - 3V at 9V DC input
Linearity: Less than 1% (up to 100kHz) 10mA
Dimension (PCB): 80x65 mm
1. J1 jumper cap plug in, SIN/TRI blue terminals output sine wave (note J1, J2 can only insert one of)
2. J2 jumper cap plug in, SIN/TRI blue terminals output triangular wave (note J1, J2 can only insert one of)
3. SQU blue terminals output pulse
4. AMP : Sine wave, triangle wave amplitude adjustment
5. FINE : Frequency fine adjustment
6. Coarse : Frequency of coarse adjustment
HARI MINGGU/AHAD/LIBUR NASIONAL TIDAK ADA PENGIRIMAN, KECUALI DALAM KONDISI TERTENTU.. TERIMA KASIH
Modul atau DIY KIT Function Generator XR2206 Kit Sine Triangle Square Wave Signal Output 1HZ-1MHZ . Terdapat 2 VARIAN yang DIY KIT (Belum Dirakit) dan ASSEMBLED (Sudah Dirakit)
ASSEMBLED:
- Modul sudah dirakit dalam casing akrilik Transparant
- Short Manual & Skema
DIY KIT:
- Belum Dirakit
- IC XR2206 + Socket 16Pin + Komponen-komponen pendukung
- PCB modul Function Generator
- Skematik rangkaian dan tata letak serta short manual
- Casing plastik + baut/sekrup 4 buah
Voltage Supply: 9-12V DC Input (PASTIKAN MENGGUNAKAN POWER SUPPLY STABIL ATAU BATERAI 9V)
Waveforms: Square, Sine & Triangle
Impedance: 600 Ohm + 10%
Frequency: 1Hz - 1MHz (Max. Freq for Square & Triangle is about 80KHz)
SINE WAVE
Amplitude: 0 - 3V at 9V DC input
Distortion: Less than 1% (at 1kHz)
Flatness: +0.05dB 1Hz - 100kHz
SQUARE WAVE
Amplitude: 8V (no load) at 9V DC input
Rise Time: Less than 50ns (at 1kHz)
Fall Time: Less than 30ns (at 1kHz)
Symmetry: Less than 5% (at 1kHz)
TRIANGLE WAVE
Amplitude: 0 - 3V at 9V DC input
Linearity: Less than 1% (up to 100kHz) 10mA
Dimension (PCB): 80x65 mm
1. J1 jumper cap plug in, SIN/TRI blue terminals output sine wave (note J1, J2 can only insert one of)
2. J2 jumper cap plug in, SIN/TRI blue terminals output triangular wave (note J1, J2 can only insert one of)
3. SQU blue terminals output pulse
4. AMP : Sine wave, triangle wave amplitude adjustment
5. FINE : Frequency fine adjustment
6. Coarse : Frequency of coarse adjustment
