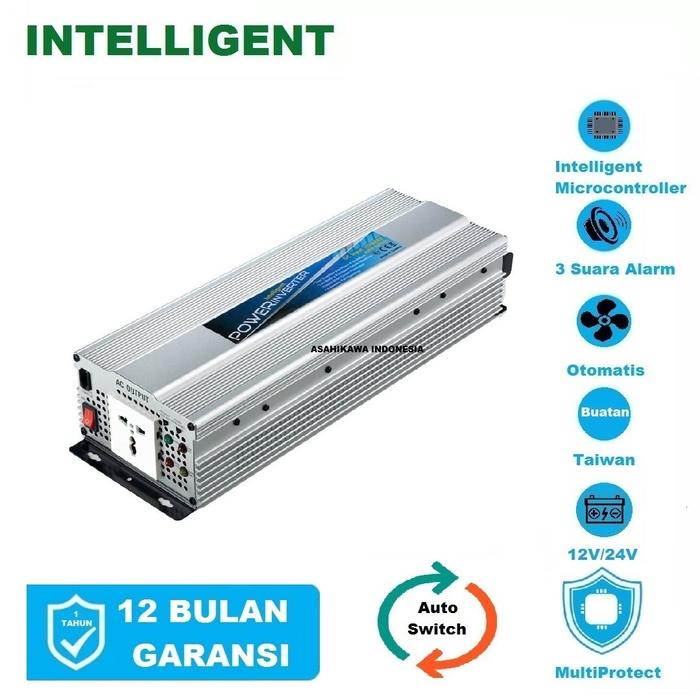

Intelligent DC to AC Power Inverter Auto Switch DC12V24V Real Capacity - ES-1000W USB

*Pelanggan Yth, pada saat barang diterima, wajib untuk membuat video unboxing.Apabila tanpa
video unboxing kami tidak melayanin komplain dengan alasan apapun.
WhatsApp Only : 085107670000
*Barang Tidak Bisa Ditukar Atau Dikembalikan

SPECIFICATION
SYSTEM
ES-1000W - ES1200W
*Real Capacity
*Continuous Power:
DC 12V: 800W-1000W
DC 24V: 1000W-1200W
*Surge Power:
DC12V:1600W-2000W
DC24V:2000W-2400W
*Output Voltage: 220VAC
*Output Waveform: Modified Sine Wave
*Output USB Port:5VDC,2.1A
*Standby Current (Normal Mode): < 0.5A
*Standby Current (Saving Mode): 0.03~0.15A
*Output Regulation: < ±5% Intelligent PWM
*Output Frequency: 50/60 Hz switchable by DIP Switch
*Input Voltage:
DC 12V: 10~15V;
DC 24V: 20~30V
*Input Voltage Auto-Switch: YES
*Efficiency: > 85%

PROTECTION
*Input Type Auto-Detection : YES
*Input Polarity Reverse Protection: Fuse
*Input Low Voltage Protection:
DC 12V: < 10.5V Pre-Alarm, < 9.5V Shutdown & Alarm
DC 24V: < 21V Pre-Alarm, < 20V Shutdown & Alarm
*Output Short Circuit Protection: YES
*Output Overheat Protection:
> 60°C Pre-Alarm,
> 65°C Shutdown & Alarm
*Output Overload Protection:
DC 12V: > 900W Pre-Alarm, > 950W Shutdown & Alarm
DC 24V: > 1200W Pre-Alarm, > 1300W Shutdown & Alarm
DC 12V: > 1100W Pre-Alarm, > 1190W Shutdown & Alarm
DC 24V: > 1350W Pre-Alarm, > 1500W Shutdown & Alarm
*Cooling: Intelligent Fan

MECHANICAL
*Fuse: 25A x 6PCS-8PCS
*AC Outlets: EU: 1
*Dimension (L x W x H):345x137x79mm
*Dimension (L x W x H):405x137x79mm
*Net Weight: 2.2 kg
*Net Weight: 2.6 kg

FEATURES
*Accept both 12V & 24V Battery Type
*Energy Saving Mode
*Microcontroller Integrated
*Compact Design with Aluminum Housing
*LED Indicators for Inverter States
*Input & Output Fully Isolation
*Intelligent Temp & Load Cooling Fan
*Multi Pre-Alarm & Shutdown Alarm Protections:
Battery Type Detection / Polarity Reverse / Low Voltage
*Short Circuit / Overheat / Overload
*100% Made in Taiwan
*Aluminum Housing
