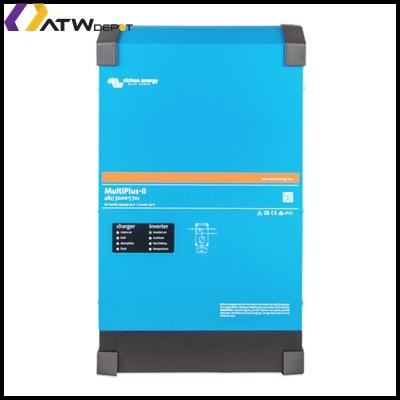

Victron 5kW Battery Inverter/Charger Multiplus II 48/5000/70-50

Victron Battery Inverter/Charger Multiplus II 48/5000/70-50 The MultiPlus-II combines the functions of the MultiPlus and the MultiGrid. It has all the features of the MultiPlus, plus an external current transformer option to implement PowerControl and PowerAssist and to optimize self-consumption with external current sensing (max. 32A). It also has all the features of the MultiGrid with built-in anti-islanding and an increasingly long list of country approvals. - DC Input voltage range 38 – 66V - Output Output voltage: 230 VAC ± 2% Frequency: 50 Hz ± 0,1% (1) - Cont. output power at 25°C (3) 5000VAVA - Cont. output power at 25°C 4000W - Cont. output power at 40°C 3700W - Cont. output power at 65°C 3000W - Maximum apparent feed-in power 4000VA - Peak power 9000W - Maximum efficiency 96% - Zero load power 18W - Zero load power in AES mode 12W - Zero load power in Search mode 2W - AC Input Input voltage range: 187-265 VAC Input frequency: 45 – 65 Hz - Charge voltage absorption 57,6V - Charge voltage float 55,2V - Storage mode 52,8V - Maximum battery charge current (4) 70A - Battery temperature sensor Yes - Auxiliary output Yes (32A) - External AC current sensor (optional) 100A - Programmable relay (5) Yes - Protection (2) a – g - VE.Bus communication port For parallel and three phase operation, remote monitoring and system integration - General purpose com. port Yes, 2x - Remote on-off Yes - Operating temperature range -40 to +65°C (fan assisted cooling) - Humidity (non-condensing) max 95% - Material amp; Colour Steel, blue RAL 5012 - Protection category IP22 - Battery-connection M8 bolts - 230 V AC-connection Screw terminals 13 mm² (6 AWG) - Weight 29 kg - Dimensions (hxwxd) mm 565 x 323 x 148 *biaya pengiriman akan di infokan manual karena tergantung lokasi, mohon pilih pengiriman yang paling murah karena hanya kirim dokumen
