BARANG TERJAMIN 100% ORIGINAL! GARANSI RESMI!! Sebelum pesan bertanya dahulu ke kami untuk ketersediaan stock!

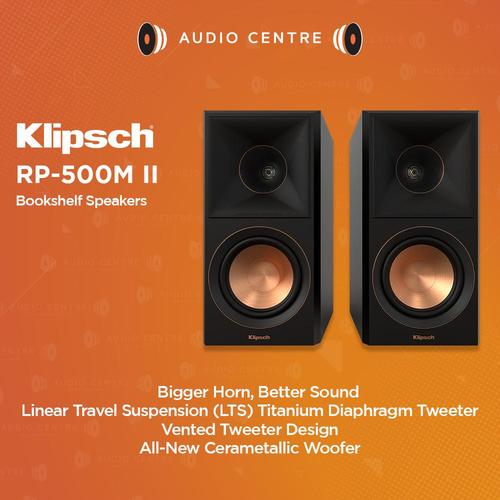

90° X 90° SILICON COMPOSITE HYBRID TRACTRIX HORN Horn loading maximizes efficiently and increases detail while focusing high frequencies towards the listening area. Proprietary Tractrix geometry provides the most efficient transfer of high frequency waves into the listening area. The phase plug and compressed molded silicon face ensure smooth frequency response. When combined, the cleanest, most natural sound possible is created. The second generation increases horn size for a larger soundstage and enhanced directivity.
LINEAR TRAVEL SUSPENSION (LTS) TITANIUM DIAPHRAGM TWEETER The exclusive Linear Travel Suspension minimizes distortion for enhanced, detailed performance. LTS tweeters are a hallmark of previous Reference lines, making it a core component of some of the best speakers in the world.
VENTED TWEETER DESIGN The vented tweeter housing reduces standing waves that create unwanted harmonics, resulting in enhanced detail and clarity in high frequency reproduction.
Specification: FREQUENCY RESPONSE 50-25kHz +/- 3dB SENSITIVITY* 92dB @ 2.83V / 1m* POWER HANDLING (CONT/PEAK) 75W/300W NOMINAL IMPEDANCE 8 Ohms Compatible CROSSOVER FREQUENCY 1530Hz HIGH FREQUENCY DRIVER 1" Titanium LTS Vented Tweeter with Hybrid Cross-Section Expanded Tractrix Horn LOW FREQUENCY DRIVER 5.25" Cerametallic Cone Woofer with Faraday rings ENCLOSURE MATERIAL MDF (Internally Braced) ENCLOSURE TYPE Bass Reflex via rear-firing Tractrix Port INPUTS Single aluminum binding posts HEIGHT INCHES (MM) 13.56" (34.4 cm) WIDTH INCHES (MM) 6.81" (17.3 cm) DEPTH INCHES (MM) 10.65" (27.0 cm)
