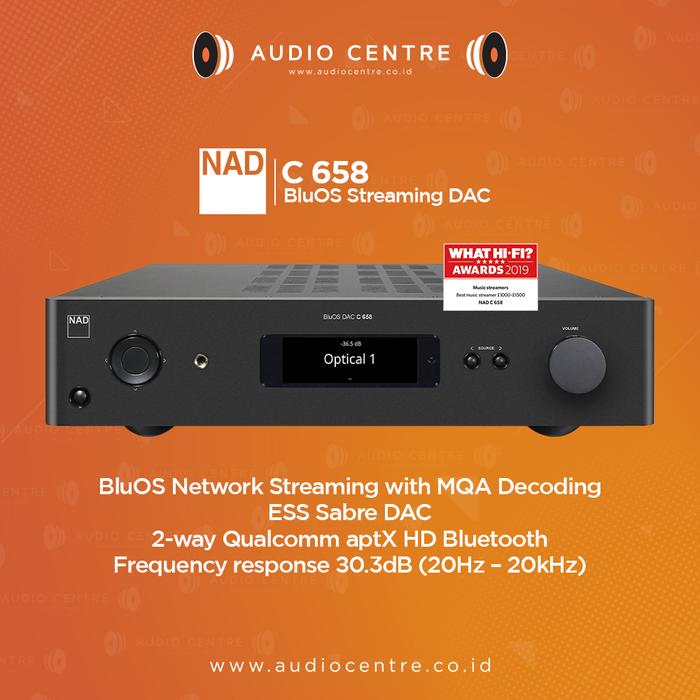

NAD C658 / C 658 BluOS Streaming DAC / nad c658

BARANG TERJAMIN 100% ORIGINAL!!
GARANSI RESMI!!
Untuk Spesifikasi lebih lanjut, cek website kami di www.audiocentre.co.id
http://www.audiocentre.co.id/product.php?product=2140

The NAD C658 is a neww kind of stereo component, one that at once changes preconceptions and oepns new possibilities for audio reproduction. You see, there has never before been a component offering such a rich palette of both new and proven technology. Bold statements

SPECIFICATIONS:
LINE INPUT, PRE-OUT:
> THD (20Hz - 20Khz): <0.005% at 2V out
> Signal to Noise Ratio: >106dB (IHF: A-weighted, ref. 500mV out, unity gain)
> Channel Separation: >80dB (1kHz), >70dB (10kHz)
> Input Impedance (R and C) 22k ohm + 100pF
> Maximum input signal: >4.5Vrms (ref 0.1% THD)
> Output Impedance: Source Z + 240 Ohm
> Input Sensitivity: 93mV (ref.500mV out, Volume maximum)
> Frequency response: +-0.3 dB (20Hz - 20kHz)
> Maximum Voltage Output: >4.5V (ref 0.1% THD)
> Tone Controls Treble: >+-7.0dB at 20kHz; Bass:+-7.0dB at 60Hz;Balanced: -10dB

PHONO INPUT, AUDIO PRE-OUT:
> THD (20Hz-20Khz): <0.01% at 2V out
> Signal to Noise Ratio: >84dB (200 ohm source; A-weighted ref 500mV out), >76dB (MM cartridge source, IHF; A-weighted, ref.500mV out)
> Input Sensitivity: 1.44mV (ref 500mV out, Volume maximum)
> Frequency Response: >+-0.3dB (20Hz - 20kHz)
> Maximum input signal at 1kHz: >80mVrms (ref 0.1% THD)

LINE INPUT, HEADPHONE OUT:
> THD (20Hz - 20kHz): <0.0005% at 1V out
> Signal to Noise Ratio: >110dB (32 ohms loads A-WRD, ref. 2V out unity gain)
> Frequency Response: +-0.3dB (20Hz - 20kHz)
> Channel Separation: >60dB at 1kHz
> Output Impedance: 6 Ohms

DAC
> Supported audio file formats: MP3, AAC, WMA, OGG, WMA-L, ALAC, OPUS
> High Resolution audio formats: MQA, FLAC, WAV, AIFF, Supports converted DSD
> Native sampling rates: up to 32bit.192kHz
> Bit depths: 16-24

> Dimension in mm (W x H x D)
