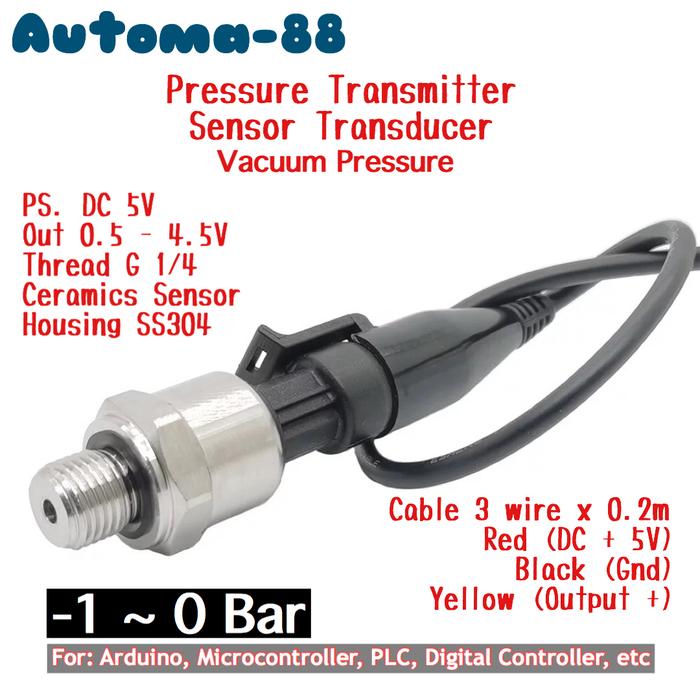

Negative Pressure Sensor -1 ~ 0 Bar -1Bar Vacuum Transducer DC 5V

*** READY STOCK, SILAHKAN DI ORDER ***
*** Vacuum Pressure Transmitter sensor DC 5V, Range -1 ~ 0 Bar, Output 0.5-4.5V, Drat G 1/4 ***

Specifications:
Measuring range: -1 ~ 0 Bar
Accuracy 1%FS
Output signal: 0.5-4.5V DC
Supply voltage: DC 5V
Operating temperature: -2085
Compensation temperature: -2080
Operating current: =3mA
Temperature drift (zero & sensitivity): 0.03%FS/
Long-term stability: 0.2%FS/year
Response time: 3ms
Overload pressure: 150%FS
Burst pressure 150%FS
Cycle life 500,000 times
Sensor core: Al2O3-96% ceramic sensor
Pressure medium: Non-corrosive liquid or gas
Pressure connection: G1/4
Electrical connection: Packard connection
Cable wire: 3 wire x 0.2m
Housing material: 304 Stainless Steel
Protection class: IP65
Explosion-proof class: ExiaCT6

Wiring:
red +
black -
yellow output +

Package includes:
1x Vacuum Pressure Transmitter -1 ~ 0 Bar

Note: Typical Application: Non-corrosive Liquid or Gas media
