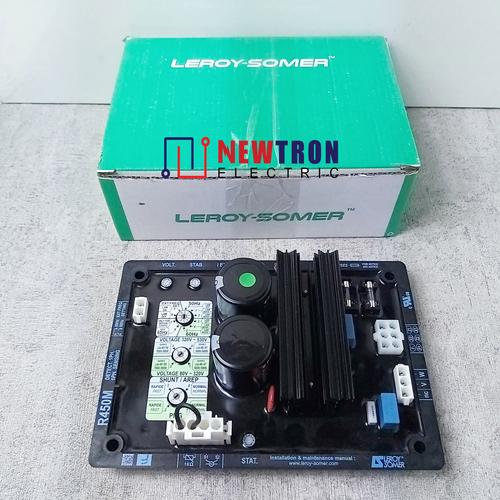

AVR R450M Genuine Original Ori Asli Leroy Somer Made In France R 450M

AVR Generator R450M Leroy Somer Original Made In France lengkap dus+certificate.

Electrical characteristics :
- maximum power supply: 150V - 50/60 Hz
- Rated overload current: 10 A - 10 s
- Electronic protection:
- In the case of a short-circuit, the excitation
current is reduced to a value less than 1A
after 10 s
- In the event of loss of voltage reference,
the excitation current is reduced to a value
less than 1A after 1s for ARE P/SHUNT, 10 s
for PMG.
- In the event of over excitation, the current
is reduced as indicated in the next diagram
(see 3.2.1.4).
- Fuses: F1 on X1 and F2 on Z2 10A, 250V.
- Voltage sensing
0-110 V terminals = 95 to 140 V
0-220 V terminals = 170 to 260 V
0-380 V terminals = 340 to 528 V
For other voltages, a transformer should be
used.
- Voltage regulation: 0.5%.
- Current sensing: (parallel operation): input
S1, S2 intended for 1 C.T. < 2.5 VA cl1,
secondary 1 A or 5 A.

Untuk kondisi AVR Original tidak selalu sesuai dengan foto
Sebagai contoh :
- Cor tidak mulus (dikarenakan AVR Original Handmade).
- Nomor serial berbeda karena setiap AVR Original memiliki serial number masing-masing.
- Kelengkapan manual book dan kardus (terkadang beberapa tipe tidak dapat kardus)

Barang 100% Original dan Baru, untuk mengetahui kondisi asli dari produk dapat ditanyakan terlebih dahulu via chat agar tidak terjadi kesalah pahaman.
