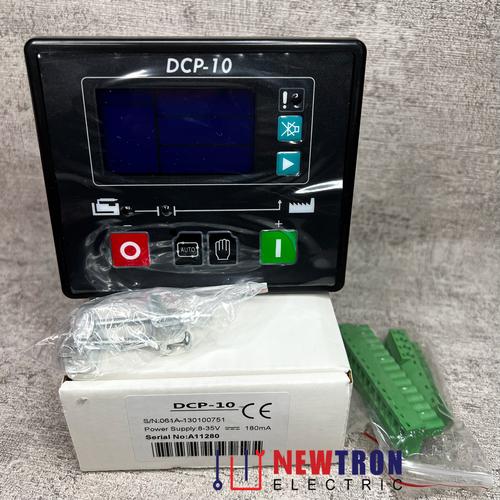

Modul Controller DCP-10 DCP10 FG Wilson GU610A / W Harsen OEM Replace

The DCP-10 is an Automatic Controller for generator. When running in "AUTO" mode, it starts theGenset after receiving remote start signal and on failure automatically stops the Genset. Thegenerator's controlling procedure and protection parameters can be modified, which fully meets theGenset's requirements of automatic start, stop control and basic protection.

- The module displays fault conditions, operational status and related metering data on panel LCD.
- LCD has a backlight function so that the operator can read running parameters clearly even in theshadow.
- The controller has 2 modes: AUTO and MANUAL. Either can be chosen through the panel pushbutton.
- Measures and displays generator's output voltage, current, oil pressure, coolant temperature,frequency, DC source voltage, etc.
- True RMS measure of voltage and current, which ensures the data more accurate.
- Control the close/open of generator output switch.
- Equipped with built-in communication interface to configure parameters by PC.
- All connections of controller are by secure plug and socket, for ease and convenience to connect,move, maintain and replace the device.
